Technical specifications
| Pump type | TP |
| Nominal flow (m³/h) | 33.5 m³/h |
| Nominal head (m) | 34.71 m |
| Minimum efficiency index (MEI) | 0.70 |
| Power P2 (kW) | 5.5 kW |
| Phases | 3 |
| Voltage (V) | 380-415D/660-690Y V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 (Protect. water jets/dust) |
| Frequency converter | None |
| Max. liquid temp. (°C) | 120 °C |
| Min. liquid temp. (°C) | 0 °C |
| Max. ambient temp. (°C) | 60 °C |
| Max. operating pressure | 16 bar |
| Pipe connection | DIN |
| Connection pressure rating | PN 16 |
| Port-to-port length (mm) | 440 mm |
| Pump housing material | Cast iron |
| Impeller material | Cast iron |
| Shaft seal | BAQE |
| Length (mm) | 440 mm |
| Height (mm) | 110 mm |
| Gross weight | 106 kg |
| Net weight | 89 kg |
| Motor number | 99313151 |
| EAN code | 5712607190750 |

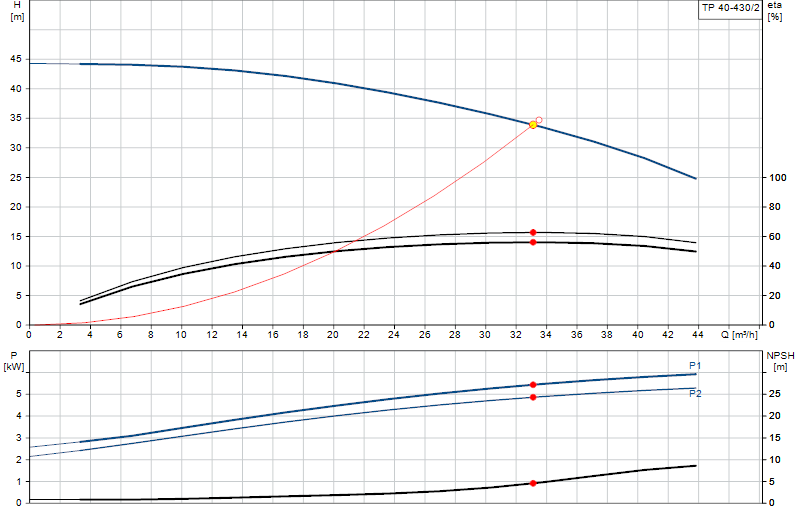

Performance curve
Hover over the curve to read flow and head at any point.
