Technical specifications
| Pump type | TP |
| Nominal flow (m³/h) | 738.8 m³/h |
| Nominal head (m) | 17.62 m |
| Minimum efficiency index (MEI) | 0.70 |
| Power P2 (kW) | 45 kW |
| Phases | 3 |
| Voltage (V) | 200DD/400D V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 (Protect. water jets/dust) |
| Frequency converter | None |
| Max. liquid temp. (°C) | 120 °C |
| Min. liquid temp. (°C) | 0 °C |
| Max. ambient temp. (°C) | 60 °C |
| Max. operating pressure | 14 bar |
| Pipe connection | JIS |
| Connection pressure rating | 10K |
| Port-to-port length (mm) | 1240 mm |
| Pump housing material | Ductile iron |
| Impeller material | Cast iron |
| Shaft seal | BAQE |
| Length (mm) | 1240 mm |
| Height (mm) | 348 mm |
| Gross weight | 1000 kg |
| Net weight | 925 kg |
| Motor number | 98787221 |
| EAN code | 5712606538607 |

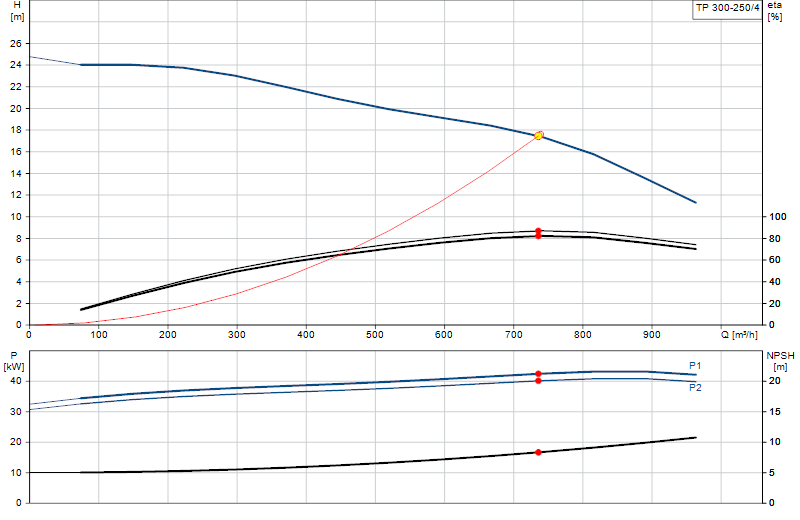

Performance curve
Hover over the curve to read flow and head at any point.
