Technical specifications
| Number of stages | 6 |
| Phases | 1 |
| Voltage (V) | 200-240 V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP68 |
| Max. liquid temp. (°C) | 35 °C |
| Min. liquid temp. (°C) | 0 °C |
| Max. operating pressure | 15 bar |
| Impeller material | Composite |
| Gross weight | 6.8 kg |
| Net weight | 6.2 kg |
| Approvals | CE,PCBC,RCM,EAC,CN Rohs Exempt |
| Motor number | 96195296 |
| EAN code | 5700398878490 |

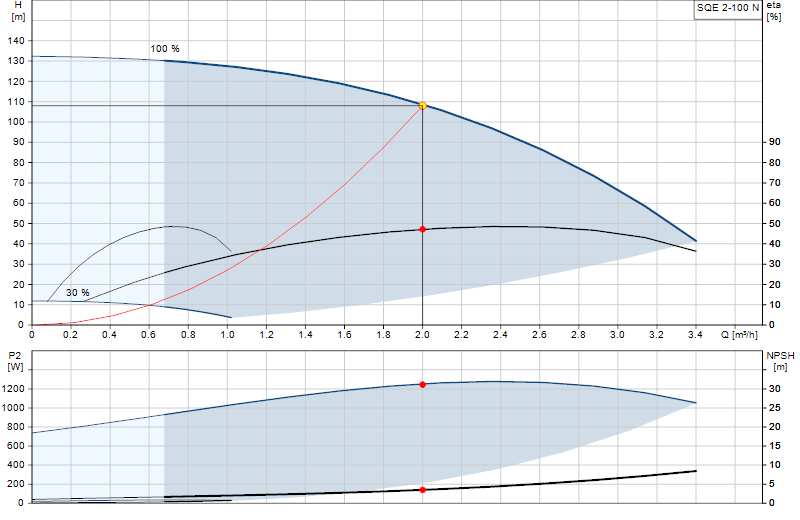

Performance curve
Hover over the curve to read flow and head at any point.
