Technical specifications
| Pump type | SP18 |
| Number of stages | 48 |
| Minimum efficiency index (MEI) | 0.70 |
| Phases | 3 |
| Voltage (V) | 350-440 V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP68 |
| Insulation class | F |
| Frequency converter | VFD IPM type required |
| Max. liquid temp. (°C) | 60 °C |
| Min. liquid temp. (°C) | -15 °C |
| Pipe connection | R |
| Connection size | 3 inch |
| Impeller material | Stainless steel |
| Gross weight | 223 kg |
| Approvals | CE,EAC,UKCA,SEPRO,MOROCCO |
| Motor number | 76207720 |
| EAN code | 5715121882811 |

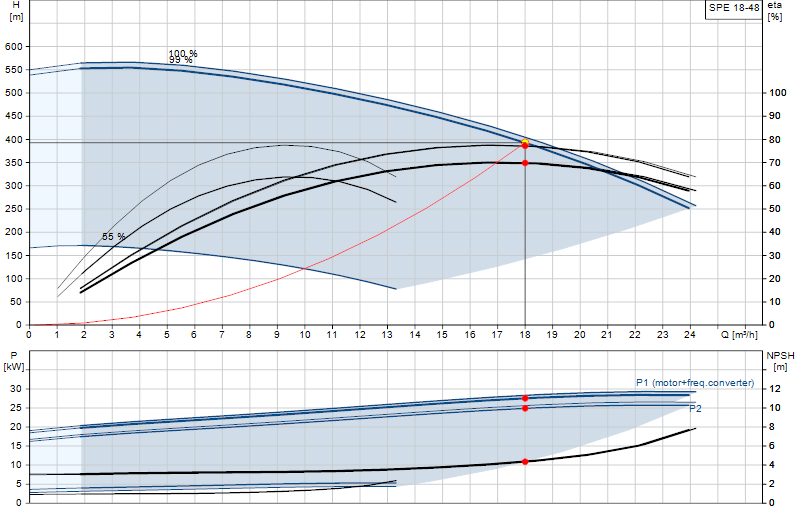

Performance curve
Hover over the curve to read flow and head at any point.
Documents and datasheets
-
SP/SPE 18, SP/SPE 32 (Service instructions)
Service · English 44,1 MB -
SP accessories (Data booklet)
Data booklets · English 42,2 MB -
SPE (Data booklet)
Data booklets · English 15,5 MB -
MS6000P, SPE - Correction sheet (Not including Americas)
Installation & operating instructions · English 0,7 MB -
SP (I & O instructions)
Installation & operating instructions · English 7,3 MB -
SP (Safety instructions)
Installation & operating instructions · English 6,4 MB -
Cathodic protection (Quick guide)
Quick Guides · English 1,3 MB -
Flow Sleeves (Quick Guide)
Quick Guides · English 2,1 MB -
SP 18 (Service Kit Catalogue)
Service · English 1,3 MB -
SP 32 (Service Kit Catalogue)
Service · English 1,3 MB
