Technical specifications
| Pump type | SP215 |
| Number of stages | 2 |
| Frequency (Hz) | 50 Hz |
| Max. liquid temp. (°C) | 60 °C |
| Min. liquid temp. (°C) | -15 °C |
| Max. operating pressure | 60 bar |
| Pipe connection | Rp |
| Connection size | 6 inch |
| Impeller material | Stainless steel |
| Gross weight | 79.9 kg |
| Net weight | 52.5 kg |
| Approvals | CE,EAC,UKCA,SEPRO,MOROCCO |
| EAN code | 5700392241054 |

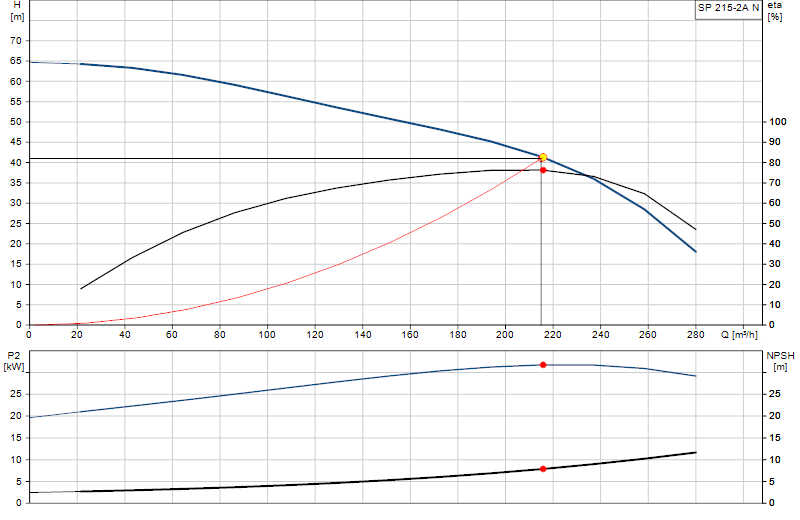

Performance curve
Hover over the curve to read flow and head at any point.
