Technical specifications
| Pump type | SP160 |
| Number of stages | 2 |
| Power P2 (kW) | 22 kW |
| Phases | 3 |
| Voltage (V) | 220-230 V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP68 |
| Max. liquid temp. (°C) | 40 °C |
| Min. liquid temp. (°C) | -15 °C |
| Max. operating pressure | 60 bar |
| Pipe connection | Rp |
| Connection size | 6 inch |
| Impeller material | Stainless steel |
| Gross weight | 137 kg |
| Net weight | 107 kg |
| Approvals | CE,EAC,UKCA,SEPRO,MOROCCO |
| Motor number | 78105618 |
| EAN code | 5700397147290 |

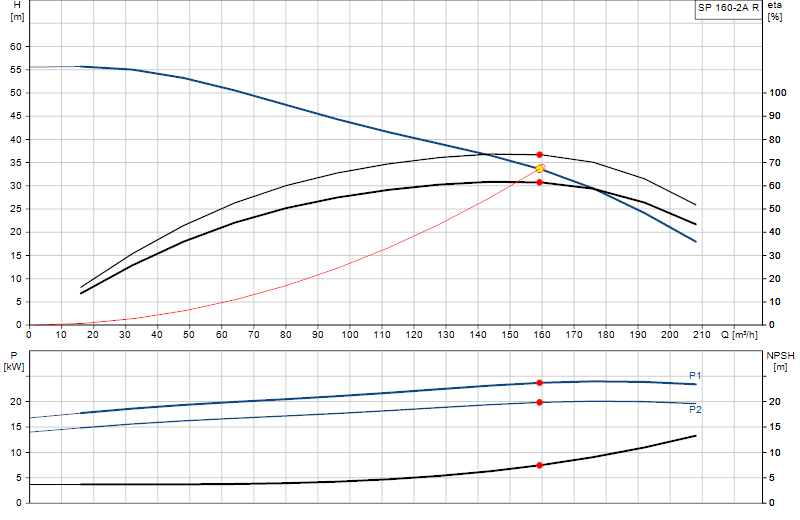

Performance curve
Hover over the curve to read flow and head at any point.
