SCALA1 3-45 Grundfos
Grundfos

SCALA1 3-45

Code: 99530405 EAN: 5713830591598
Type SCALA1
Request quote

Technical specifications

Nominal flow (m³/h)3 m³/h
Nominal head (m)29.2 m
Max. head (m)44 m
Phases1
Voltage (V)230 V
Frequency (Hz)50 Hz
Enclosure classIPX4D
Insulation classF
Max. liquid temp. (°C)45 °C
Min. liquid temp. (°C)0 °C
Max. ambient temp. (°C)55 °C
Max. operating pressure8 bar
Connection pressure ratingPN 8
Pump housing materialComposite
Impeller materialComposite
Length (mm)466 mm
Height (mm)316 mm
Width (mm)202 mm
Gross weight14 kg
Net weight12 kg
ApprovalsCE,MORO,SEPRO,AAA
EAN code5713830591598

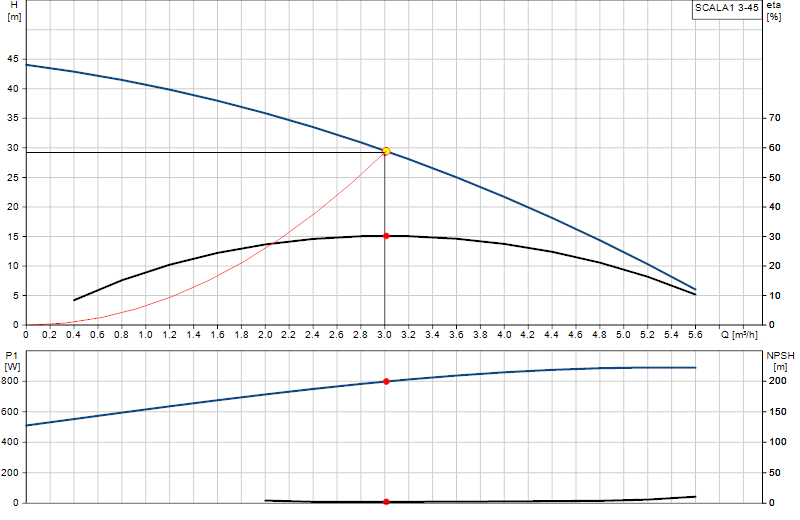

Performance curve

Performance curve SCALA1 3-45

Hover over the curve to read flow and head at any point.
