Technical specifications
| Max. head (m) | 27 m |
| Phases | 3 |
| Voltage (V) | 380-415/660-719 V |
| Frequency (Hz) | 50 Hz |
| Max. rated current (A) | 672 A |
| Enclosure class | IP68 |
| Insulation class | F |
| Max. liquid temp. (°C) | 40 °C |
| Min. liquid temp. (°C) | 0 °C |
| Max. ambient temp. (°C) | 40 °C |
| Pipe connection | DIN |
| Connection pressure rating | PN 10 |
| Pump housing material | Ductile iron |
| Impeller material | Ductile iron |
| Gross weight | 6720 kg |
| Net weight | 6290 kg |
| EAN code | 5712607793197 |

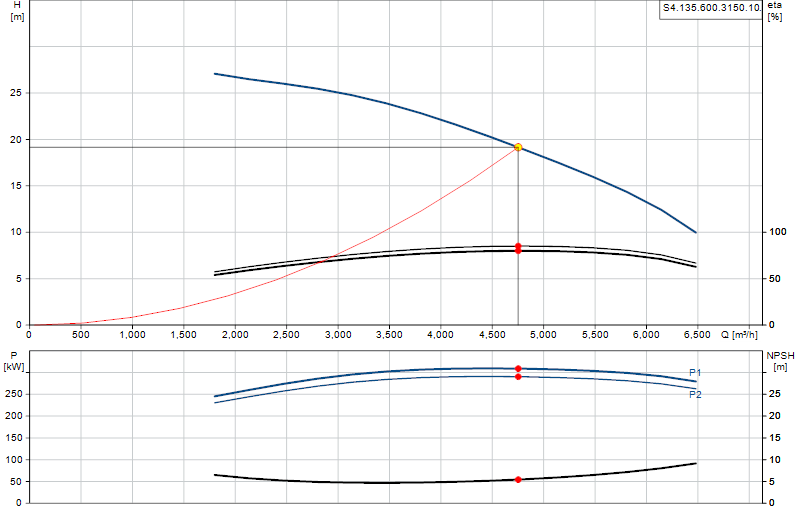

Performance curve
Hover over the curve to read flow and head at any point.
