Technical specifications
| Pump type | NKGE |
| Nominal flow (m³/h) | 116.7 m³/h |
| Nominal head (m) | 27.5 m |
| Power P2 (kW) | 30 kW |
| Phases | 3 |
| Voltage (V) | 400 V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 |
| Frequency converter | Built-in |
| Max. liquid temp. (°C) | 120 °C |
| Min. liquid temp. (°C) | -25 °C |
| Max. ambient temp. (°C) | 50 °C |
| Max. operating pressure | 16 bar |
| Connection pressure rating | PN 16 |
| Pump housing material | Stainless steel |
| Impeller material | Stainless steel |
| Shaft seal | BQQE |
| Gross weight | 512 kg |
| Net weight | 457 kg |
| Motor number | 92928111 |
| EAN code | 5715123339467 |

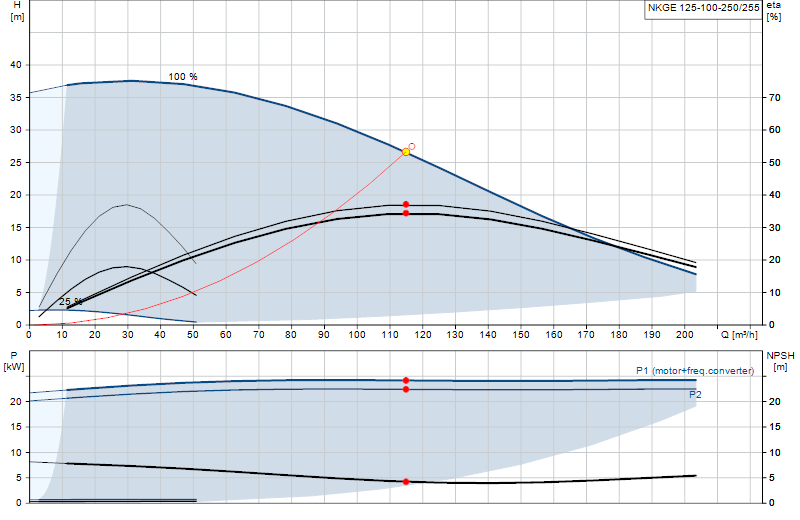

Performance curve
Hover over the curve to read flow and head at any point.
Documents and datasheets
-
NK, NKE, NKG, NKGE (Service instructions)
Service · English 22,9 MB -
NBG, NBGE, NKG, NKGE, 50 Hz (Data booklet)
Data booklets · English 40,1 MB -
NK, NKG (Safety instructions)
Installation & operating instructions · English 5,6 MB -
NK, NKG, Model B (I & O instructions)
Installation & operating instructions · English 13,6 MB -
TPE, TPED Series 1000; NBE, NBGE, NKE, NKGE; TPE, TPED, NBE, NKE Series 2000 (I&O)
Installation & operating instructions · English 6,5 MB -
TPE, TPED, NBE, NBGE, MTBE, NKE, NKGE, TPE, TPED, NBE, NKE Series 2000, - below 15 kW, 2-pole and 11 kW, 4-pole
Installation & operating instructions · English 4,8 MB -
TPE, TPED; TPE2, TPE2 D, TPE3, TPE3 D; NBE, NBGE, NKE, NKGE; MTBE (Safety instructions)
Installation & operating instructions · English 1,8 MB -
Process Driven Engineering (Leaflet)
Product Brochures · English 5,7 MB -
NB, NBG, NK, NKG Coated solutions Service Instructions
Service · English 14,9 MB -
NBG/E, NKG/E - Super Vortex impeller range – Range 1 (Service Kit Catalogue)
Service · English 8,5 MB -
NK, NKE - R2 - (Service Kit Catalogue)
Service · English 6,6 MB
Variants & alternative codes
Equivalent alternatives
Pumps in the same hydraulic class as 93037616 (equivalent flow and head), available in the catalogue.
