NKG 65-40-200/206 Grundfos

Grundfos

NKG 65-40-200/206

Code: 97648621 EAN: 5710620195981

Type NKG Bare shaft

Request quote

Technical specifications

Pump type	NKG
Nominal flow (m³/h)	55 m³/h
Nominal head (m)	43.8 m
Minimum efficiency index (MEI)	0.59
Frequency (Hz)	50 Hz
Frequency converter	None
Max. liquid temp. (°C)	120 °C
Min. liquid temp. (°C)	-25 °C
Max. operating pressure	16 bar
Connection pressure rating	PN 16
Pump housing material	Cast iron
Impeller material	Cast iron
Shaft seal	BQQE
Gross weight	63.6 kg
Net weight	52.8 kg
EAN code	5710620195981

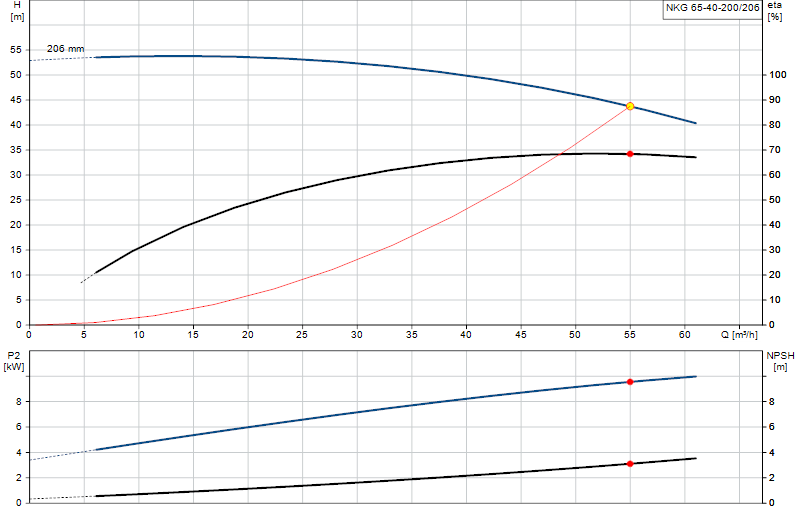

Performance curve

Performance curve NKG 65-40-200/206

Hover over the curve to read flow and head at any point.

Documents and datasheets

Variants & alternative codes

Compare

NKG 65-40-200/206

Grundfos NKG 65-40-200/206 55.95 m³/h45.32 m11 kW

Compare

NKG 65-40-200/206

Grundfos NKG 65-40-200/206 56.04 m³/h45.48 m11 kW

Compare

NKG 65-40-200/206

Grundfos NKG 65-40-200/206 56.14 m³/h45.63 m11 kW
