Technical specifications
| Pump type | NKG |
| Nominal flow (m³/h) | 52.4 m³/h |
| Nominal head (m) | 3.1 m |
| Minimum efficiency index (MEI) | 0.70 |
| Frequency (Hz) | 50 Hz |
| Frequency converter | None |
| Max. liquid temp. (°C) | 120 °C |
| Min. liquid temp. (°C) | -25 °C |
| Max. operating pressure | 16 bar |
| Connection pressure rating | PN 16 |
| Pump housing material | Stainless steel |
| Impeller material | Stainless steel |
| Shaft seal | BQQE |
| Gross weight | 66.5 kg |
| Net weight | 55.7 kg |
| EAN code | 5710624208205 |

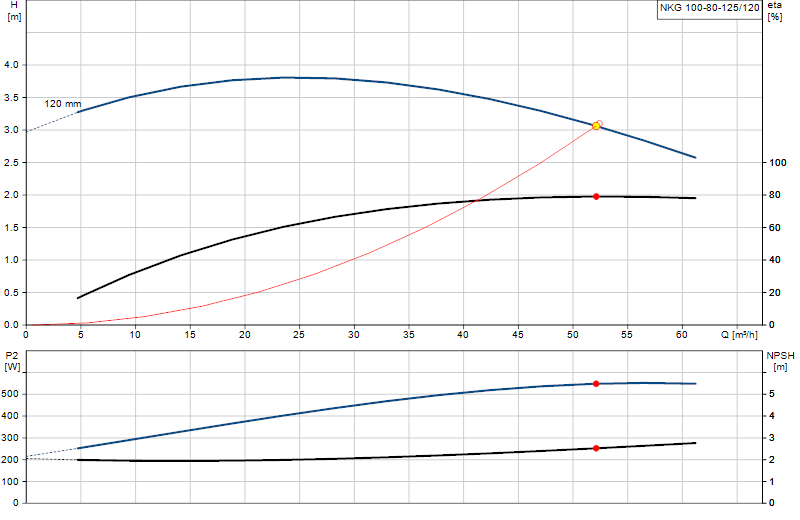

Performance curve
Hover over the curve to read flow and head at any point.
Documents and datasheets
Variants & alternative codes
Equivalent alternatives
Pumps in the same hydraulic class as 97775635 (equivalent flow and head), available in the catalogue.
Related products
Grundfos 97775635
