NKG 100-65-200/217 Grundfos

Grundfos

NKG 100-65-200/217

Code: 98150737 EAN: 5711490530926

Type NKG Bare shaft

Request quote

Technical specifications

Pump type	NKG
Nominal flow (m³/h)	115.7 m³/h
Nominal head (m)	58.4 m
Minimum efficiency index (MEI)	0.70
Frequency (Hz)	50 Hz
Frequency converter	None
Max. liquid temp. (°C)	120 °C
Min. liquid temp. (°C)	-25 °C
Max. operating pressure	16 bar
Connection pressure rating	PN 16
Pump housing material	Cast iron
Impeller material	Cast iron
Shaft seal	BQQE
Gross weight	86 kg
Net weight	76.5 kg
EAN code	5711490530926

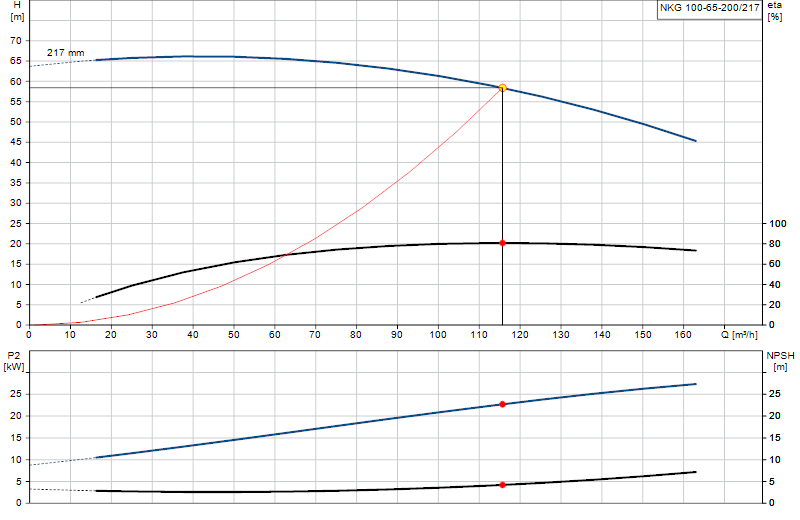

Performance curve

Performance curve NKG 100-65-200/217

Hover over the curve to read flow and head at any point.
