Technical specifications
| Pump type | NKG |
| Nominal flow (m³/h) | 116 m³/h |
| Nominal head (m) | 46.2 m |
| Minimum efficiency index (MEI) | 0.70 |
| Frequency (Hz) | 50 Hz |
| Frequency converter | None |
| Max. liquid temp. (°C) | 120 °C |
| Min. liquid temp. (°C) | 0 °C |
| Max. operating pressure | 16 bar |
| Connection pressure rating | PN 16 |
| Pump housing material | Cast iron |
| Impeller material | Cast iron |
| Shaft seal | BAQE |
| Gross weight | 85.6 kg |
| Net weight | 76.1 kg |
| EAN code | 5700314546861 |

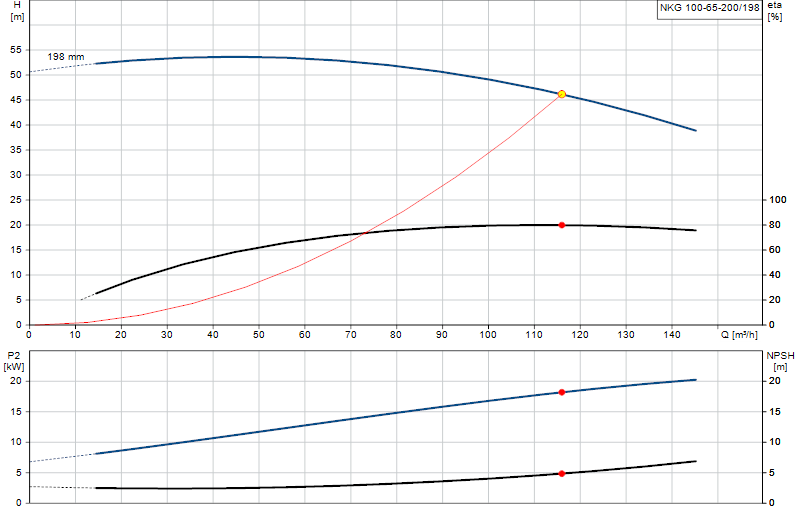

Performance curve
Hover over the curve to read flow and head at any point.
