Technical specifications
| Pump type | NKE |
| Nominal flow (m³/h) | 91.84 m³/h |
| Nominal head (m) | 56.11 m |
| Minimum efficiency index (MEI) | 0.70 |
| Power P2 (kW) | 22 kW |
| Phases | 3 |
| Voltage (V) | 380-480 V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 |
| Frequency converter | Built-in |
| Max. liquid temp. (°C) | 120 °C |
| Min. liquid temp. (°C) | 0 °C |
| Max. ambient temp. (°C) | 50 °C |
| Max. operating pressure | 16 bar |
| Connection pressure rating | PN 16 |
| Pump housing material | Cast iron |
| Impeller material | Cast iron |
| Shaft seal | BAQE |
| Gross weight | 262 kg |
| Net weight | 247 kg |
| Motor number | 92875519 |
| EAN code | 5700832003938 |

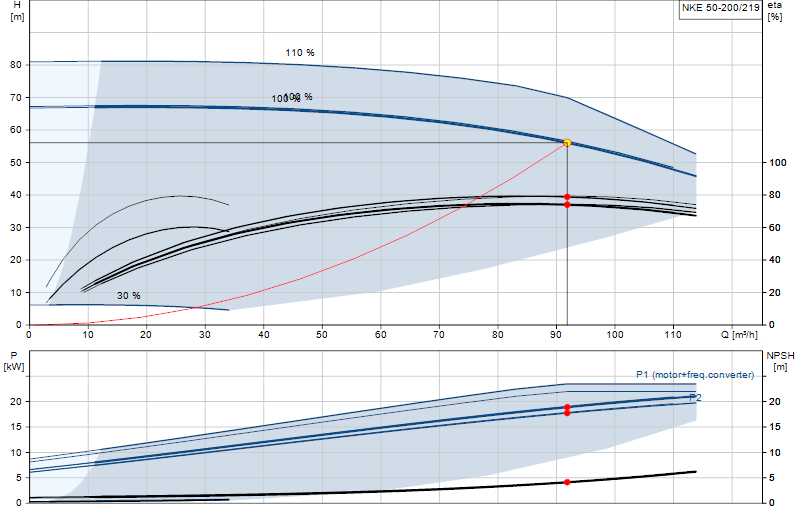

Performance curve
Hover over the curve to read flow and head at any point.
