Technical specifications
| Pump type | NK |
| Nominal flow (m³/h) | 872.3 m³/h |
| Nominal head (m) | 47.9 m |
| Minimum efficiency index (MEI) | 0.46 |
| Frequency (Hz) | 50 Hz |
| Frequency converter | None |
| Max. liquid temp. (°C) | 120 °C |
| Min. liquid temp. (°C) | 0 °C |
| Max. operating pressure | 10 bar |
| Connection pressure rating | PN 10 |
| Pump housing material | Cast iron |
| Impeller material | Cast iron |
| Shaft seal | BAQE |
| Gross weight | 578 kg |
| Net weight | 502 kg |
| EAN code | 5700318616140 |

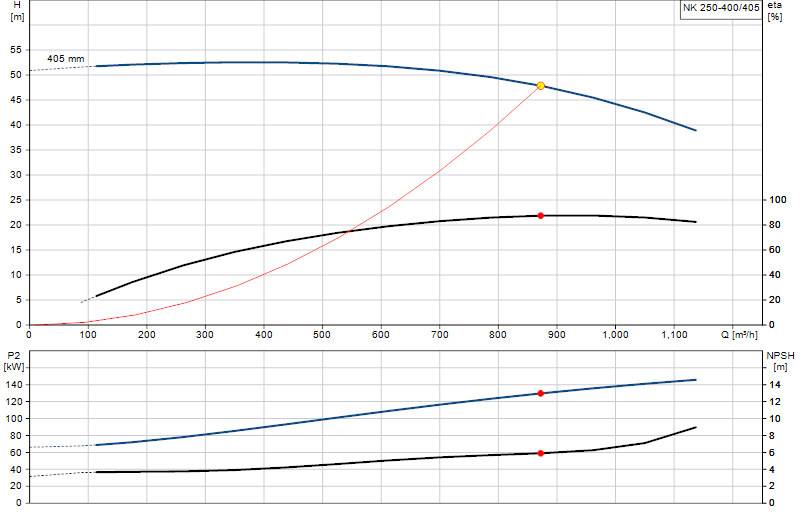

Performance curve
Hover over the curve to read flow and head at any point.
Documents and datasheets
Variants & alternative codes
Equivalent alternatives
Pumps in the same hydraulic class as 97566576 (equivalent flow and head), available in the catalogue.
Related products
Grundfos 97566576
