Technical specifications
| Pump type | NK |
| Nominal flow (m³/h) | 487.4 m³/h |
| Nominal head (m) | 38.18 m |
| Minimum efficiency index (MEI) | 0.70 |
| Power P2 (kW) | 75 kW |
| Phases | 3 |
| Voltage (V) | 380-400/660-690 V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 (Protect. water jets/dust) |
| Frequency converter | None |
| Max. liquid temp. (°C) | 140 °C |
| Min. liquid temp. (°C) | 0 °C |
| Max. ambient temp. (°C) | 40 °C |
| Max. operating pressure | 25 bar |
| Connection pressure rating | PN 25 |
| Pump housing material | Ductile iron |
| Impeller material | Stainless steel |
| Shaft seal | DAQF |
| Gross weight | 1110 kg |
| Net weight | 1020 kg |
| Motor number | 92748767 |
| EAN code | 5715474674439 |

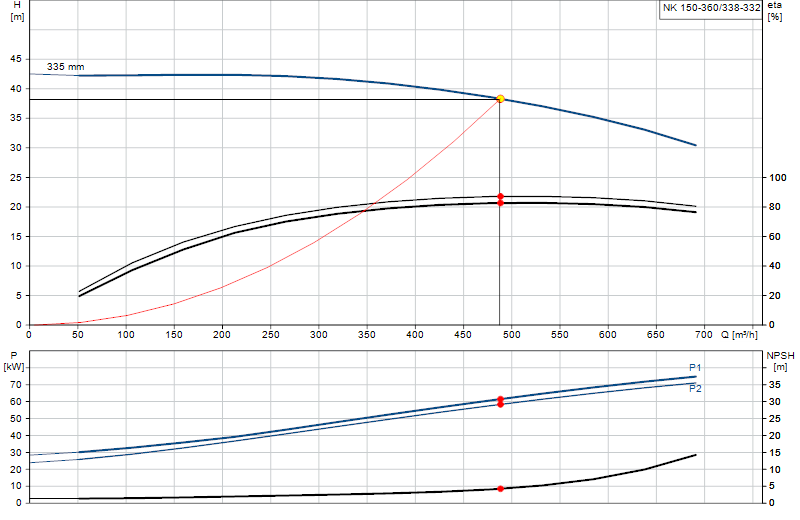

Performance curve
Hover over the curve to read flow and head at any point.
