Technical specifications
| Pump type | NK |
| Nominal flow (m³/h) | 304.8 m³/h |
| Nominal head (m) | 7.108 m |
| Minimum efficiency index (MEI) | 0.70 |
| Power P2 (kW) | 7.5 kW |
| Phases | 3 |
| Voltage (V) | 380-400/660-690 V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 (Protect. water jets/dust) |
| Frequency converter | None |
| Max. liquid temp. (°C) | 120 °C |
| Min. liquid temp. (°C) | -25 °C |
| Max. ambient temp. (°C) | 40 °C |
| Max. operating pressure | 10 bar |
| Connection pressure rating | PN 10 |
| Pump housing material | Cast iron |
| Impeller material | Stainless steel |
| Shaft seal | BQQE |
| Gross weight | 336 kg |
| Net weight | 286 kg |
| Motor number | 92740302 |
| EAN code | 5715119439768 |

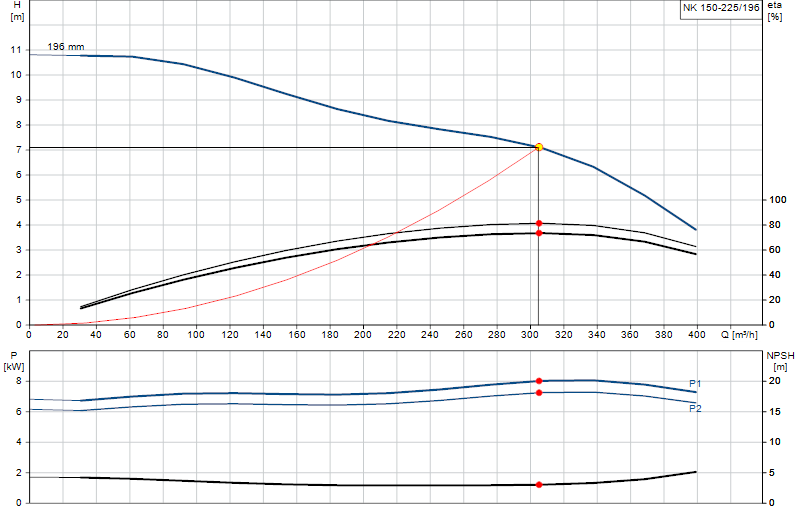

Performance curve
Hover over the curve to read flow and head at any point.
