Technical specifications
| Nominal flow (m³/h) | 31.78 m³/h |
| Nominal head (m) | 11.15 m |
| Phases | 3 |
| Voltage (V) | 440-480 V |
| Frequency (Hz) | 50 / 60 Hz |
| Enclosure class | IP55 |
| Frequency converter | Built-in |
| Max. liquid temp. (°C) | 120 °C |
| Min. liquid temp. (°C) | -25 °C |
| Max. ambient temp. (°C) | 50 °C |
| Max. operating pressure | 12 bar |
| Pipe connection | ANSI |
| Connection pressure rating | Class 125 |
| Pump housing material | Cast iron |
| Impeller material | Stainless steel |
| Shaft seal | BQQE |
| Gross weight | 91.5 kg |
| Net weight | 91 kg |
| Motor number | 93128934 |
| EAN code | 5715468955179 |

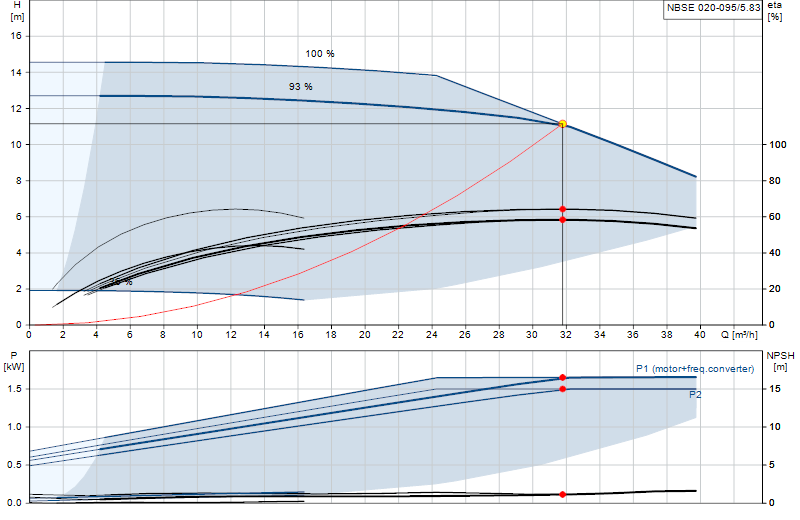

Performance curve
Hover over the curve to read flow and head at any point.
Documents and datasheets
Variants & alternative codes
Equivalent alternatives
Pumps in the same hydraulic class as 93184827 (equivalent flow and head), available in the catalogue.
