Technical specifications
| Pump type | NBGE |
| Nominal flow (m³/h) | 69.62 m³/h |
| Nominal head (m) | 166 m |
| Minimum efficiency index (MEI) | 0.70 |
| Power P2 (kW) | 75 kW |
| Phases | 3 |
| Phases | 3 |
| Voltage (V) | 400 V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 |
| Frequency converter | Built-in |
| Max. liquid temp. (°C) | 140 °C |
| Min. liquid temp. (°C) | 0 °C |
| Max. ambient temp. (°C) | 50 °C |
| Max. operating pressure | 25 bar |
| Connection pressure rating | PN 25 |
| Pump housing material | Stainless steel |
| Impeller material | Stainless steel |
| Shaft seal | DAQF |
| Gross weight | 594 kg |
| Net weight | 454 kg |
| Motor number | 93253553 |
| EAN code | 5715472845978 |

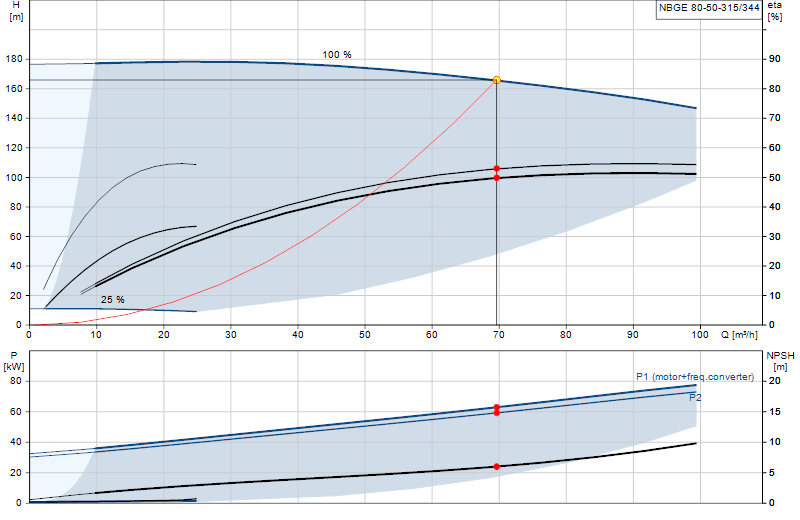

Performance curve
Hover over the curve to read flow and head at any point.
