Technical specifications
| Pump type | NBGE |
| Nominal flow (m³/h) | 480.4 m³/h |
| Nominal head (m) | 54.47 m |
| Minimum efficiency index (MEI) | 0.70 |
| Power P2 (kW) | 90 kW |
| Phases | 3 |
| Phases | 3 |
| Voltage (V) | 400 V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 |
| Frequency converter | Built-in |
| Max. liquid temp. (°C) | 120 °C |
| Min. liquid temp. (°C) | -25 °C |
| Max. ambient temp. (°C) | 50 °C |
| Max. operating pressure | 16 bar |
| Connection pressure rating | PN 16 |
| Pump housing material | Cast iron |
| Impeller material | Cast iron |
| Shaft seal | BQQE |
| Gross weight | 667 kg |
| Net weight | 526 kg |
| Motor number | 93253559 |
| EAN code | 5715123255439 |

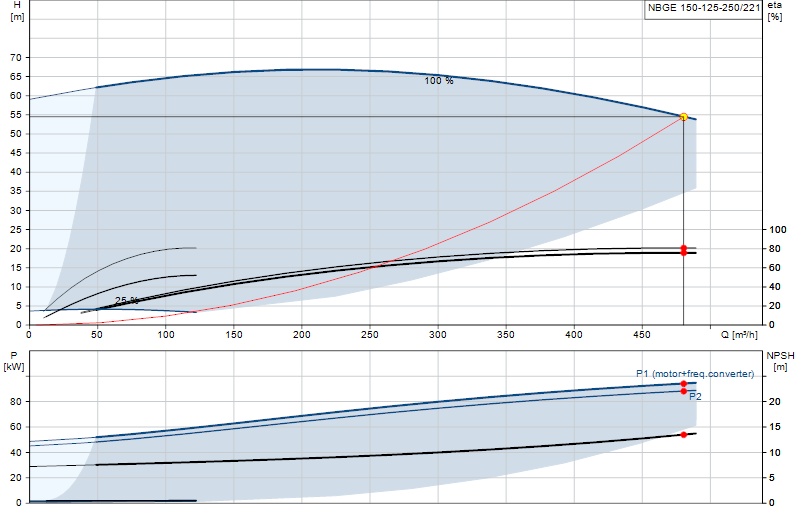

Performance curve
Hover over the curve to read flow and head at any point.
