Technical specifications
| Pump type | NB |
| Nominal flow (m³/h) | 213.7 m³/h |
| Nominal head (m) | 32.93 m |
| Minimum efficiency index (MEI) | 0.70 |
| Power P2 (kW) | 30 kW |
| Phases | 3 |
| Phases | 3 |
| Voltage (V) | 380-415 V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 |
| Frequency converter | None |
| Max. liquid temp. (°C) | 120 °C |
| Min. liquid temp. (°C) | -25 °C |
| Max. ambient temp. (°C) | 40 °C |
| Max. operating pressure | 16 bar |
| Connection pressure rating | PN 16 |
| Pump housing material | Cast iron |
| Impeller material | Stainless steel |
| Shaft seal | BQQE |
| Gross weight | 301 kg |
| Net weight | 276 kg |
| Motor number | 99174343 |
| EAN code | 5715469272886 |

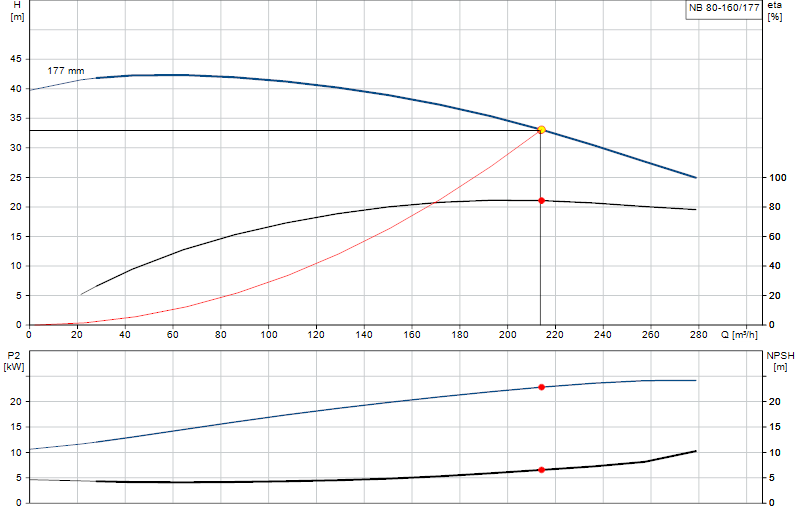

Performance curve
Hover over the curve to read flow and head at any point.
