Technical specifications
| Pump type | NB |
| Nominal flow (m³/h) | 658.5 m³/h |
| Nominal head (m) | 64.1 m |
| Minimum efficiency index (MEI) | 0.44 |
| Power P2 (kW) | 160 kW |
| Phases | 3 |
| Phases | 3 |
| Voltage (V) | 380-420D/660-725Y V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 |
| Frequency converter | None |
| Max. liquid temp. (°C) | 120 °C |
| Min. liquid temp. (°C) | 0 °C |
| Max. ambient temp. (°C) | 55 °C |
| Max. operating pressure | 10 bar |
| Connection pressure rating | PN 10 |
| Pump housing material | Cast iron |
| Impeller material | Cast iron |
| Shaft seal | BAQE |
| Gross weight | 1810 kg |
| Net weight | 1720 kg |
| Motor number | 92910083 |
| EAN code | 5711492778487 |

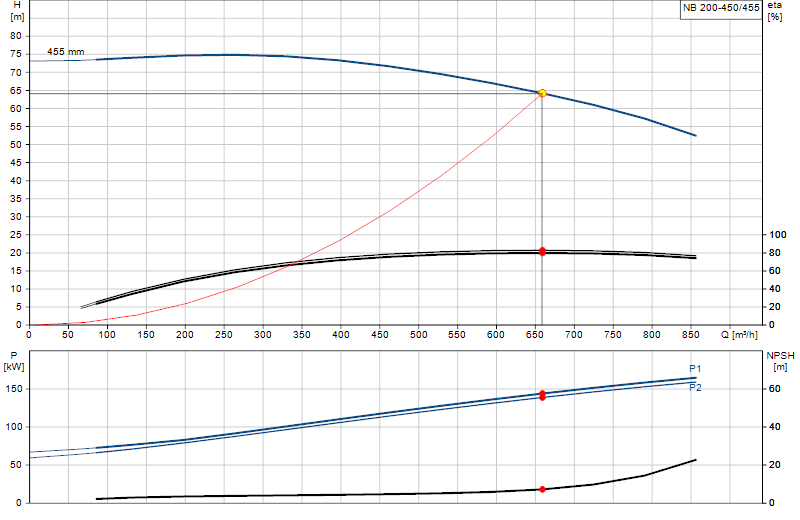

Performance curve
Hover over the curve to read flow and head at any point.
