Technical specifications
| Pump type | MTR |
| Nominal flow (m³/h) | 283 l/min |
| Nominal head (m) | 9.3 m |
| Minimum efficiency index (MEI) | 0.70 |
| Power P2 (kW) | 1.1 kW |
| Phases | 3 |
| Voltage (V) | 220-240D/380-415Y V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 Dust/Jetting |
| Frequency converter | None |
| Max. liquid temp. (°C) | 90 °C |
| Min. liquid temp. (°C) | -10 °C |
| Max. ambient temp. (°C) | 60 °C |
| Max. operating pressure | 25 bar |
| Pipe connection | G internal thread |
| Impeller material | Stainless steel |
| Shaft seal | HUUV |
| Height (mm) | 45 mm |
| Gross weight | 29.1 kg |
| Net weight | 25.8 kg |
| Approvals | CE,EAC,UKCA,RCM, |
| Motor number | 85U05105 |
| EAN code | 5711494479757 |

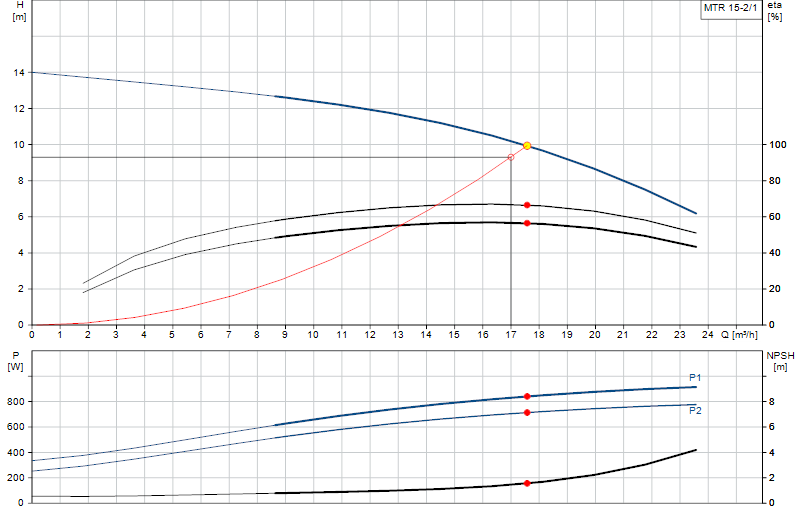

Performance curve
Hover over the curve to read flow and head at any point.
