Technical specifications
| Pump type | MTR |
| Nominal flow (m³/h) | 283 l/min |
| Nominal head (m) | 136.6 m |
| Minimum efficiency index (MEI) | 0.70 |
| Power P2 (kW) | 11 kW |
| Phases | 3 |
| Voltage (V) | 200DD/400D V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 (Protect. water jets/dust) |
| Frequency converter | None |
| Max. liquid temp. (°C) | 90 °C |
| Min. liquid temp. (°C) | -10 °C |
| Max. ambient temp. (°C) | 60 °C |
| Max. operating pressure | 25 bar |
| Pipe connection | Square / Rp |
| Impeller material | Stainless steel |
| Shaft seal | AQQV |
| Height (mm) | 45 mm |
| Gross weight | 167 kg |
| Net weight | 141 kg |
| Approvals | CE |
| Motor number | 98786324 |
| EAN code | 5712603635712 |

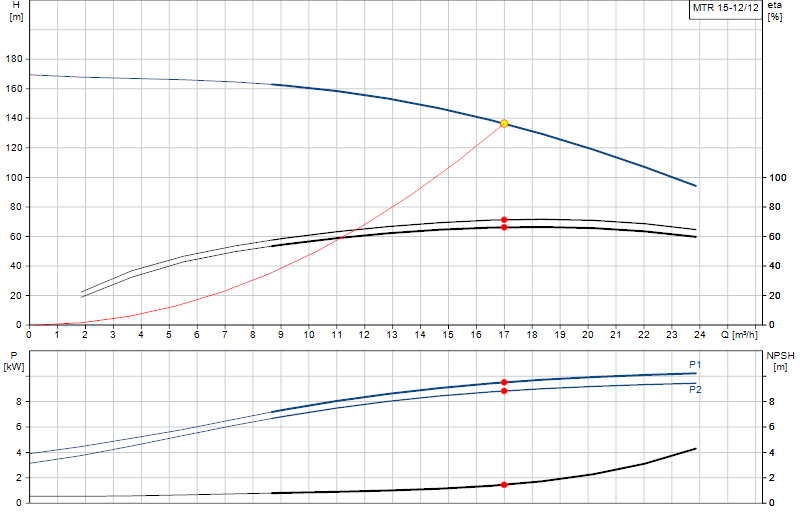

Performance curve
Hover over the curve to read flow and head at any point.
