Technical specifications
| Pump type | MTH |
| Minimum efficiency index (MEI) | 0.70 |
| Phases | 3 |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP54 |
| Insulation class | F |
| Frequency converter | None |
| Max. liquid temp. (°C) | 90 °C |
| Min. liquid temp. (°C) | -10 °C |
| Max. ambient temp. (°C) | 60 °C |
| Max. operating pressure | 10 bar |
| Pipe connection | Rp |
| Pump housing material | Cast iron |
| Impeller material | Stainless steel |
| Shaft seal | AQQV |
| Height (mm) | 25 mm |
| Gross weight | 16.1 kg |
| Net weight | 15 kg |
| Approvals | CE,EAC,UKCA |
| EAN code | 5712604838969 |

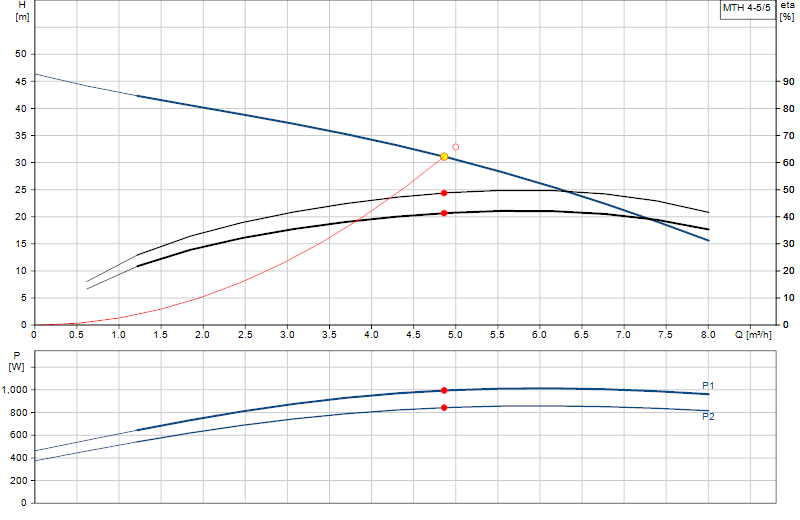

Performance curve
Hover over the curve to read flow and head at any point.
Documents and datasheets
-
MTH 2, MTH 4, MTC 2, MTC 4, Model A (Service instruction)
Service · English 0,5 MB -
MTH 10, MTH 15, New pump types including replacement guide for MTH 8, 12, 16 (Data booklet)
Data booklets · English 3,6 MB -
MTR, MTRE, SPK, MTH, MTA - immersible pumps (Data booklet)
Data booklets · English 24,8 MB -
SPK, MTH, CRK - Immersible pumps
Data booklets · English 4,3 MB -
MTH (I & O instructions)
Installation & operating instructions · English 4,2 MB -
MTH (I & O instructions)
Installation & operating instructions · English 4,1 MB -
MTH, ZH, JP, KO, CN version (I & O instructions)
Installation & operating instructions · English 12,3 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
IMMERSIBLE PUMPS FOR INDUSTRY, MTR, MTH, MTA, MTD, MTS (Product brochure)
Product Brochures · English 5,3 MB -
Machine tool (Product brochure)
Product Brochures · English 0,7 MB -
PRECISION AND FLEXIBILITY WHERE IT REALLY MATTERS (Product brochure)
Product Brochures · English 3,1 MB -
Refrigeration and Cooling Manual (Handbook)
Product Brochures · English 2,7 MB -
Machine tools; MTH, MTC (Service Kit Catalogue)
Service · English 0,4 MB -
MTH 8, 12, 16 (Service kit instruction)
Service · English 0,4 MB
