Technical specifications
| Power P2 (kW) | 11 kW |
| Phases | 3 |
| Voltage (V) | 220-240D/380-415Y V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 Dust/Jetting |
| Max. liquid temp. (°C) | 90 °C |
| Min. liquid temp. (°C) | 0 °C |
| Max. ambient temp. (°C) | 60 °C |
| Pump housing material | Cast iron |
| Shaft seal | BQQE |
| Gross weight | 180 kg |
| Net weight | 149 kg |
| Motor number | 87420001 |
| EAN code | 5711496196119 |

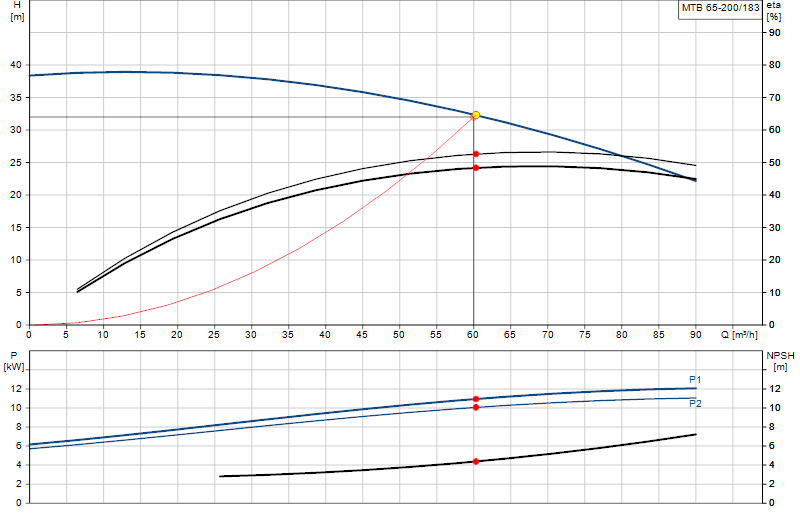

Performance curve
Hover over the curve to read flow and head at any point.
Documents and datasheets
-
MTB (Service instructions)
Service · English 0,4 MB -
MTB
Data booklets · English 3,9 MB -
MTB (Installation and operating instructions)
Installation & operating instructions · English 0,2 MB -
MTB, ATEX-approved pumps (Installation and operating instructions)
Installation & operating instructions · English 0,1 MB -
NB, NBG, MTB (GB-CN-JP version) (Installation and operating instructions)
Installation & operating instructions · English 5,2 MB -
NB, NBG, MTB (I & O instructions)
Installation & operating instructions · English 8,1 MB -
NB, NBG, MTB (Safety instructions)
Installation & operating instructions · English 5,6 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
Grundfos Industrial Solutions - Marine pumps (Product brochure)
Product Brochures · English 1,4 MB -
Machine tools; MTB (Service Kit Catalogue)
Service · English 0,3 MB
Variants & alternative codes
