Technical specifications
| Energy efficiency index (EEI) | 0.21 |
| Phases | 1 |
| Rated voltage | 230 V |
| Frequency (Hz) | 50 / 60 Hz |
| Max. rated current (A) | 2.1 A |
| Enclosure class | IPX4D |
| Insulation class | F |
| Max. liquid temp. (°C) | 110 °C |
| Min. liquid temp. (°C) | -10 °C |
| Max. ambient temp. (°C) | 40 °C |
| Max. operating pressure | 10 bar |
| Pipe connection | DIN |
| Connection pressure rating | PN 6/10 |
| Port-to-port length (mm) | 340 mm |
| Pump housing material | Cast iron |
| Impeller material | Composite |
| Gross weight | 47.5 kg |
| Net weight | 39.9 kg |
| Approvals | CE,VDE,EAC,MOROCCO,UKCA,TSE, |
| EAN code | 5712608943508 |

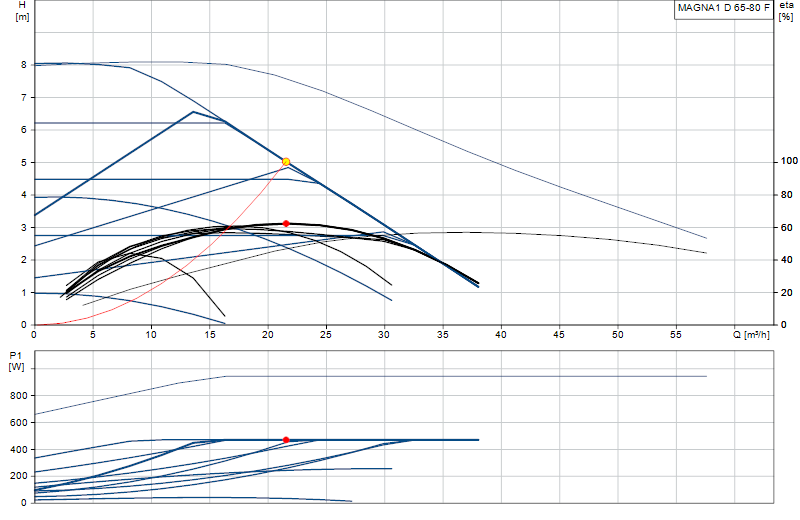

Performance curve
