Technical specifications
| Energy efficiency index (EEI) | 0.21 |
| Phases | 1 |
| Rated voltage | 230 V |
| Frequency (Hz) | 50 / 60 Hz |
| Max. rated current (A) | 3.39 A |
| Enclosure class | IPX4D |
| Insulation class | F |
| Max. liquid temp. (°C) | 110 °C |
| Min. liquid temp. (°C) | -10 °C |
| Max. ambient temp. (°C) | 40 °C |
| Max. operating pressure | 10 bar |
| Pipe connection | DIN |
| Connection pressure rating | PN 6/10 |
| Port-to-port length (mm) | 340 mm |
| Pump housing material | Cast iron |
| Impeller material | Composite |
| Gross weight | 47.5 kg |
| Net weight | 39.9 kg |
| Approvals | CE,VDE,EAC,MOROCCO,UKCA,TSE, |
| EAN code | 5712608943522 |

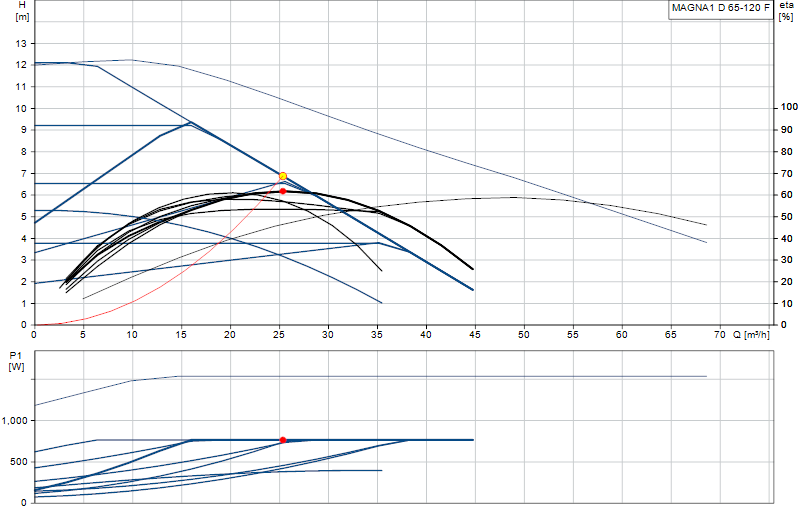

Performance curve
Hover over the curve to read flow and head at any point.
Documents and datasheets
-
MAGNA1 model A and B, data booklet
Data booklets · English 24,6 MB -
MAGNA1, model C, (Data booklet)
Data booklets · English 14,3 MB -
MAGNA1 model A and B, data sheet
Data sheets · English 0,5 MB -
New MAGNA1 model C, data sheet
Data sheets · English 0,3 MB -
MAGNA1 model A and B (Safety instructions)
Installation & operating instructions · English 1,8 MB -
MAGNA1 model A and B (terminal-connected) (Safety instructions)
Installation & operating instructions · English 1,3 MB -
MAGNA1 model A and B, (plug-connected), safety instructions
Installation & operating instructions · English 1,2 MB -
MAGNA1 model A and B, installation and operating instructions
Installation & operating instructions · English 7,8 MB -
MAGNA1 TWIN-HEAD PUMP, PAIRING/UNPAIRING, Model C (Installation and operating instructions)
Installation & operating instructions · English 0,4 MB -
MAGNA1, Model C (I & O instructions)
Installation & operating instructions · English 19,9 MB -
MAGNA1, Model C (Safety instructions)
Installation & operating instructions · English 6,2 MB -
MAGNA1 model A and B, Plug connected (Quick Guide)
Quick Guides · English 4,1 MB -
MAGNA1 model A and B, Terminal connected (Quick Guide)
Quick Guides · English 4,4 MB -
MAGNA1 Valid from Model C, terminal connected (Quick Guide)
Quick Guides · English 12,0 MB -
MAGNA1, VALID FROM MODEL C, plug connected (Quick Guide)
Quick Guides · English 6,1 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS (Product brochure)
Product Brochures · English 9,2 MB -
GRUNDFOS iSOLUTIONS in Commercial Buildings (Product brochures)
Product Brochures · English 9,1 MB -
Grundfos iSOLUTIONS in Commercial Buildings (Product brochures)
Product Brochures · English 6,2 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, INDIAN VERSION (Product brochure)
Product Brochures · English 9,1 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, Philippines version (Product brochure)
Product Brochures · English 9,2 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, Singapore VERSION (Product brochure)
Product Brochures · English 9,2 MB -
THE NEW MAGNA1, model C (Product brochure)
Product Brochures · English 1,4 MB -
MAGNA, MAGNA1, MAGNA3, MAGNA3 D, MAGNA3 N, International (Service Kit Catalogue)
Service · English 2,4 MB -
MAGNA1 model C, Terminal-connected versions / Control box (Service kit instructions)
Service · English 2,8 MB -
MAGNA1, MAGNA3 - Condensation jacket for MAGNA 1 and 3 (Service kit instructions)
Service · English 2,0 MB -
MAGNA1, MAGNA3 Terminal connected versions, Front cover (Service kit instruction)
Service · English 0,4 MB -
MAGNA1, MAGNA3, Plug connected versions, Pump head, clamp, O-ring, (Service kit instruction)
Service · English 1,6 MB -
MAGNA1, MAGNA3, Terminal connected versions, Pump head, clamp, O-ring, (Service kit instruction)
Service · English 1,6 MB -
MAGNA1, Plug connected versions, Control box, (Service kit instruction)
Service · English 1,5 MB
Equivalent codes
Interchange and cross-reference table for 99221380: equivalents from other brands available in the catalogue.
Wilo Stratos 65/1-12Wilo TOP-S 65/13
