Technical specifications
| Nominal flow (m³/h) | 290 m³/h |
| Nominal head (m) | 93 m |
| Power P2 (kW) | 75 kW |
| Phases | 3 |
| Voltage (V) | 380-400/660-690 V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 (Protect. water jets/dust) |
| Max. liquid temp. (°C) | 100 °C |
| Min. liquid temp. (°C) | 0 °C |
| Max. ambient temp. (°C) | 40 °C |
| Max. operating pressure | 25 bar |
| Connection pressure rating | PN 25 |
| Impeller material | Stainless steel |
| Shaft seal | SAQP |
| Gross weight | 971 kg |
| Net weight | 883 kg |
| Motor number | 92657466 |
| EAN code | 5715119738243 |

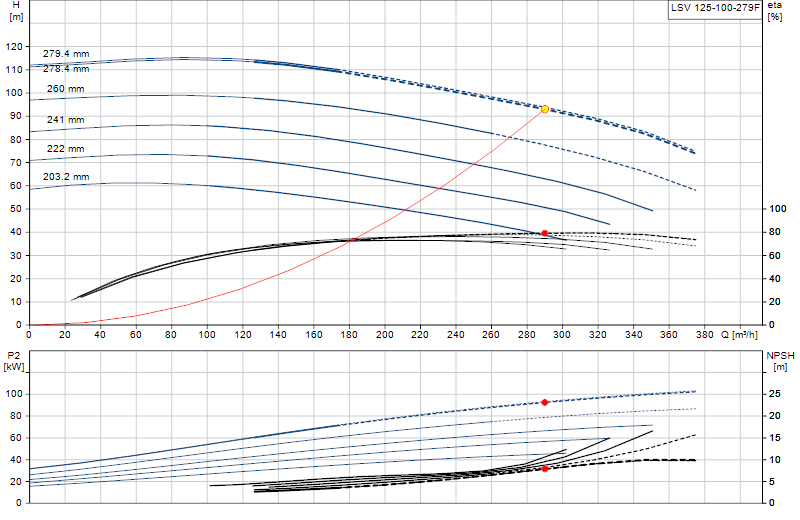

Performance curve
Hover over the curve to read flow and head at any point.
