Technical specifications
| Nominal flow (m³/h) | 595.5 m³/h |
| Nominal head (m) | 14.94 m |
| Power P2 (kW) | 18.5 kW |
| Phases | 3 |
| Voltage (V) | 380-400D/660-690Y V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 (Protect. water jets/dust) |
| Max. liquid temp. (°C) | 100 °C |
| Min. liquid temp. (°C) | 0 °C |
| Max. ambient temp. (°C) | 40 °C |
| Max. operating pressure | 10 bar |
| Connection pressure rating | PN 10 |
| Impeller material | Silicon bronze |
| Shaft seal | BBQE |
| Gross weight | 1080 kg |
| Net weight | 882 kg |
| Motor number | 99547707 |
| EAN code | 5715473751162 |

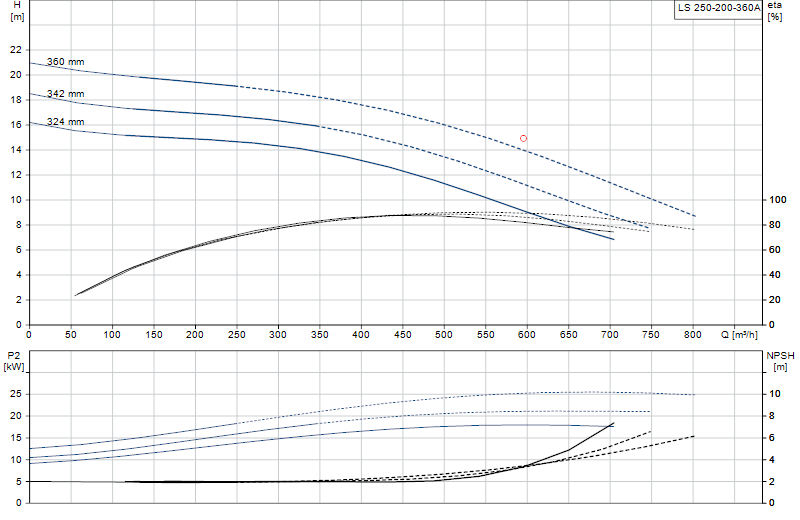

Performance curve
Hover over the curve to read flow and head at any point.
