Technical specifications
| Nominal flow (m³/h) | 258.6 m³/h |
| Nominal head (m) | 45.78 m |
| Power P2 (kW) | 22 kW |
| Phases | 3 |
| Voltage (V) | 380-420D/660-725Y V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 |
| Max. liquid temp. (°C) | 100 °C |
| Min. liquid temp. (°C) | 0 °C |
| Max. ambient temp. (°C) | 55 °C |
| Max. operating pressure | 16 bar |
| Connection pressure rating | PN 16 |
| Impeller material | Stainless steel |
| Shaft seal | BBQE |
| Gross weight | 648 kg |
| Net weight | 532 kg |
| Approvals | CE,EAC |
| Motor number | 83V16130 |
| EAN code | 5713829863293 |

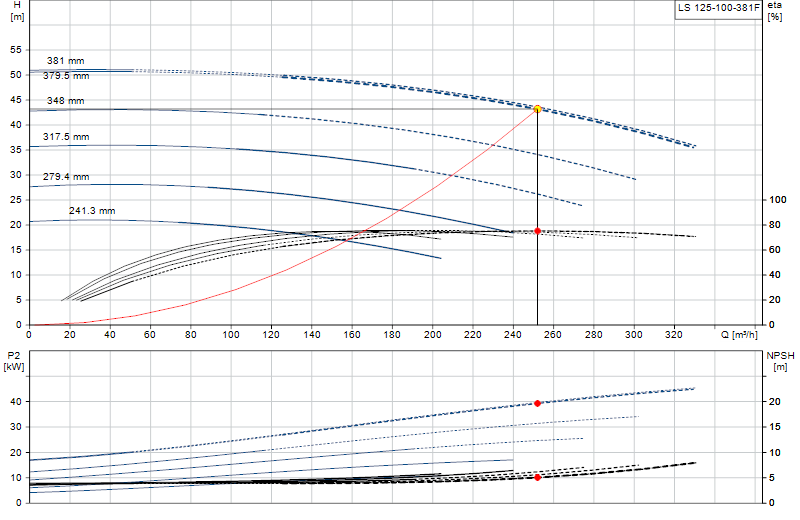

Performance curve
Hover over the curve to read flow and head at any point.
