Technical specifications
| Nominal flow (m³/h) | 4679 m³/h |
| Nominal head (m) | 22.4 m |
| Max. head (m) | 28.5 m |
| Phases | 3 |
| Rated voltage | 380 V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP68 |
| Insulation class | F |
| Max. liquid temp. (°C) | 40 °C |
| Min. liquid temp. (°C) | 0 °C |
| Max. ambient temp. (°C) | 40 °C |
| Pipe connection | DIN |
| Pump housing material | Ductile cast iron |
| Impeller material | Ductile cast iron |
| Gross weight | 8190 kg |
| Net weight | 6290 kg |
| Approvals | CE,EAC |
| EAN code | 5715123610665 |

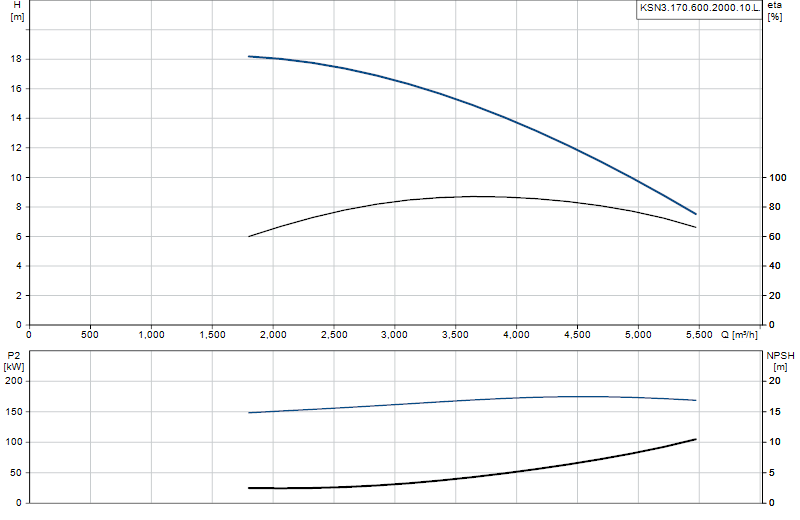

Performance curve
Hover over the curve to read flow and head at any point.
Documents and datasheets
Equivalent alternatives
Pumps in the same hydraulic class as 93220373 (equivalent flow and head), available in the catalogue.
