KPL.1000.90.10.T.50.11.E.40 Grundfos

Grundfos

KPL.1000.90.10.T.50.11.E.40

Code: 99265834 EAN: 5713826244040

Request quote

Technical specifications

Nominal flow (m³/h)	1490 l/s
Nominal head (m)	3.6 m
Max. head (m)	4.9 m
Phases	3
Voltage (V)	400 V
Frequency (Hz)	50 Hz
Enclosure class	IP68
Insulation class	F
Max. ambient temp. (°C)	40 °C
Max. operating pressure	10 bar
Pump housing material	Cast iron
Impeller material	Stainless steel
Width (mm)	2675 mm
Gross weight	2550 kg
Net weight	2400 kg
Approvals	CE,EAC
EAN code	5713826244040

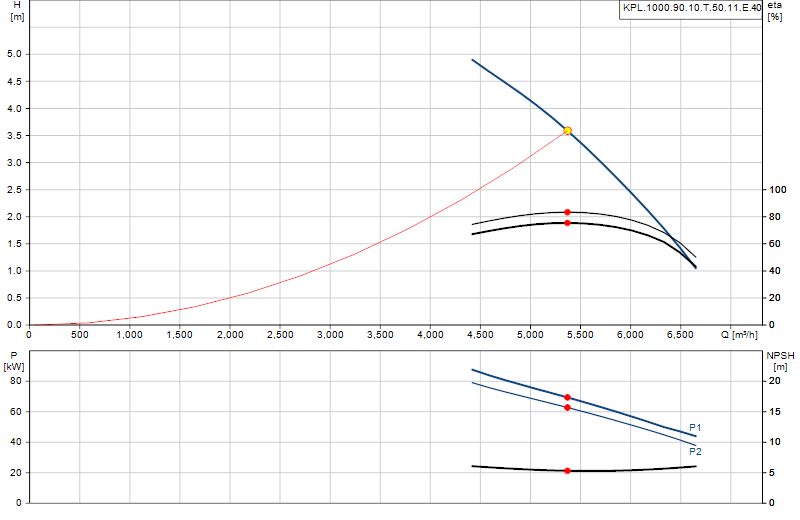

Performance curve

Performance curve KPL.1000.90.10.T.50.11.E.40

Hover over the curve to read flow and head at any point.

Documents and datasheets

KPL, KWM (Service instruction)
Service · English 10,5 MB
Oil service kit (KPL.700-1400, KWM 700-1400) (Service instruction)
Service · English 2,8 MB
GATE PUMP PUMPING STATION (Data booklet)
Data booklets · English 1,5 MB
KPL and KWM Pump Accessories (Data booklet)
Data booklets · English 2,9 MB
KPL and KWM Pumps, Pump Accessories (Data booklet)
Data booklets · English 2,6 MB
KPL, KPG and KWM (11-700 kW) (Data booklet)
Data booklets · English 18,1 MB
Correction sheet - KPL, KPG, KWM
Installation & operating instructions · English 0,2 MB
KPL, KPG and KWM (Safety instructions)
Installation & operating instructions · English 1,5 MB
KPL, KPG and KWM, 11-700 kW, 50 Hz, 11-800 kW, 60 Hz, DIN (Installation and operating instructions)
Installation & operating instructions · English 2,1 MB
Monitoring Unit GU02 (Installation and operating instructions)
Installation & operating instructions · English 1,2 MB
Relay Unit - GU01 (Installation and operating instructions)
Installation & operating instructions · English 0,6 MB
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB
Compact Suction Intake, Perfect solution for water intake (Product brochure)
Product Brochures · English 5,1 MB
GRUNDFOS FMC (FLOOD MITIGATION CONTROLLER) (Product brochure)
Product Brochures · English 0,8 MB
GRUNDFOS iSOLUTIONS FOR WATER UTILITY APPLICATIONS (Product brochure)
Product Brochures · English 3,4 MB
GRUNDFOS WATER UTILITY (Flood Control) (Product brochure)
Product Brochures · English 6,9 MB
GRUNDFOS WATER UTILITY (OPTIMISED DESIGN OF STORMWATER TANKS) (Product brochure)
Product Brochures · English 8,2 MB
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB
KPL and KWM (11-700 kW) (Product brochure)
Product Brochures · English 4,3 MB
OPTIMISED WATER SOLUTIONS, India version (Product brochure)
Product Brochures · English 2,5 MB
Process Driven Engineering (Leaflet)
Product Brochures · English 5,7 MB
Water Utility range (Product brochure)
Product Brochures · English 3,9 MB
KPL, KWM (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB
