Technical specifications
| Nominal flow (m³/h) | 7164 m³/h |
| Nominal head (m) | 3.9 m |
| Max. head (m) | 3.9 m |
| Phases | 3 |
| Voltage (V) | 380 V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP68 |
| Insulation class | F |
| Max. ambient temp. (°C) | 40 °C |
| Max. operating pressure | 10 bar |
| Pipe connection | DIN |
| Pump housing material | Cast iron |
| Impeller material | Stainless steel |
| Width (mm) | 1970 mm |
| Gross weight | 3240 kg |
| Net weight | 2800 kg |
| Approvals | CE,EAC |
| EAN code | 5713830920404 |

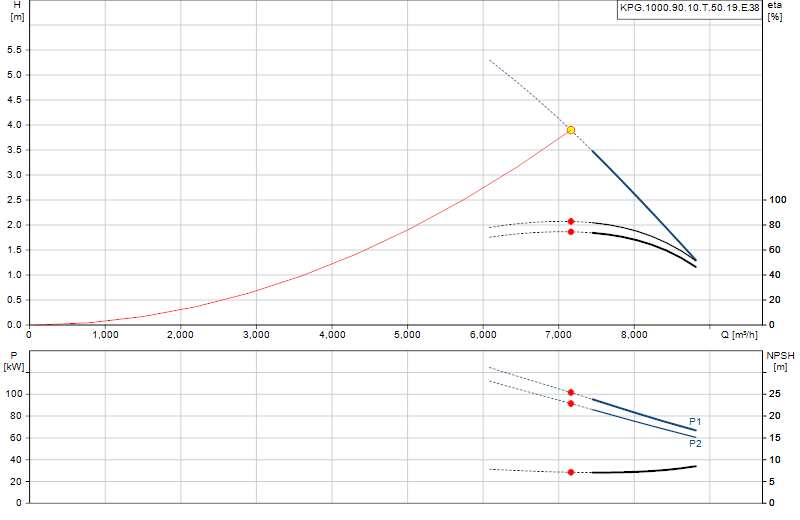

Performance curve
Hover over the curve to read flow and head at any point.
