Technical specifications
| Nominal flow (m³/h) | 6.9 m³/h |
| Nominal head (m) | 83.8 m |
| Number of stages | 9 |
| Power P2 (kW) | 2.2 kW |
| Phases | 3 |
| Voltage (V) | 380-500 V |
| Frequency (Hz) | 50 / 60 Hz |
| Enclosure class | IP55 |
| Max. liquid temp. (°C) | 60 °C |
| Min. liquid temp. (°C) | 0 °C |
| Max. ambient temp. (°C) | 50 °C |
| Impeller material | Stainless steel |
| Shaft seal | HQQE |
| Gross weight | 57 kg |
| Net weight | 47.6 kg |
| Approvals | CE,EAC,CN ROHS EXE,MORO,SEPRO |
| Motor number | 98362282 |
| EAN code | 5713829029972 |

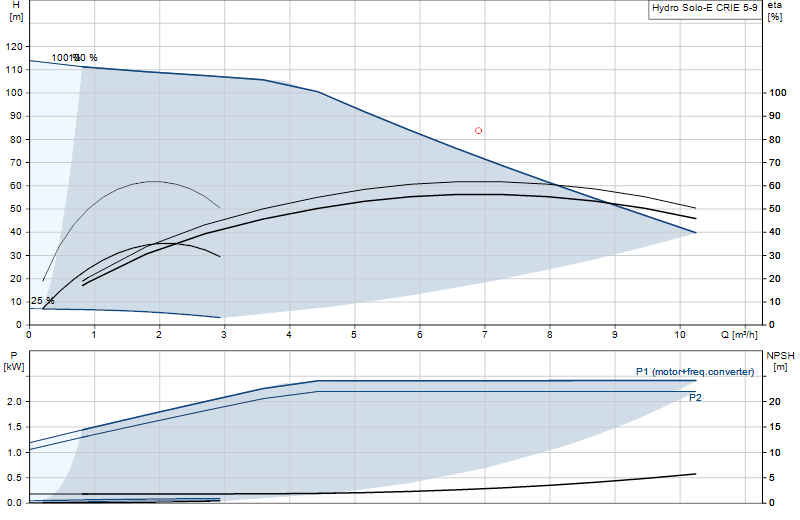

Performance curve
Hover over the curve to read flow and head at any point.
Documents and datasheets
-
Wolgan Valley Resort and Spa makes perfect marriage with Grundfos pumps (Case history)
Case histories · English 0,1 MB -
Hydro Solo-E and Hydro Solo-E Optimum, Complete Booster Systems (Data booklet)
Data booklets · English 7,8 MB -
Hydro Solo-E, Hydro Solo-E Optimum (Installation and operating instructions)
Installation & operating instructions · English 2,6 MB -
Hydro Solo-E, Hydro Solo-E Optimum (Safety instructions)
Installation & operating instructions · English 0,7 MB -
Moroccan declaration of conformity, Hydro Solo-E (Declaration)
Installation & operating instructions · English 0,2 MB -
HYDRO SOLO-E (Quick Guide)
Quick Guides · English 7,5 MB -
Hydro Solo-E, OPTIMUM (Quick Guide)
Quick Guides · English 53,2 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
HYDRO SOLO-E Optimum (Product brochure)
Product Brochures · English 1,9 MB -
Hydro Solo E / S (Service Kit Catalogue)
Service · English 0,2 MB
Equivalent alternatives
Pumps in the same hydraulic class as 99432877 (equivalent flow and head), available in the catalogue.
