Technical specifications
| Nominal flow (m³/h) | 2.14 m³/h |
| Nominal head (m) | 40.54 m |
| Number of stages | 6 |
| Power P2 (kW) | 0.55 kW |
| Phases | 1 |
| Voltage (V) | 200-240 V |
| Frequency (Hz) | 50 / 60 Hz |
| Enclosure class | IP55 |
| Max. liquid temp. (°C) | 60 °C |
| Min. liquid temp. (°C) | 0 °C |
| Max. ambient temp. (°C) | 50 °C |
| Impeller material | Stainless steel |
| Shaft seal | HQQE |
| Gross weight | 49 kg |
| Net weight | 46.1 kg |
| Approvals | CE,EAC,CN ROHS EXE,MORO,SEPRO |
| Motor number | 98248246 |
| EAN code | 5712601138000 |

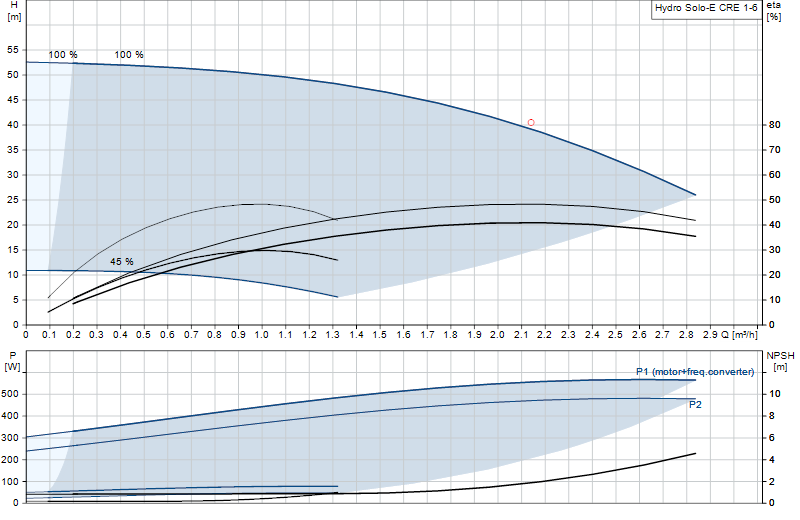

Performance curve
Hover over the curve to read flow and head at any point.
