Technical specifications
| Nominal flow (m³/h) | 600 m³/h |
| Nominal head (m) | 86.2 m |
| Max. head (m) | 119.2 m |
| Phases | 3 |
| Rated voltage | 400 V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP54 |
| Max. liquid temp. (°C) | 60 °C |
| Min. liquid temp. (°C) | 5 °C |
| Max. ambient temp. (°C) | 40 °C |
| Max. operating pressure | 16 bar |
| Connection pressure rating | PN 16 |
| Gross weight | 3980 kg |
| Net weight | 3770 kg |
| Approvals | CE,EAC |
| EAN code | 5715470056710 |

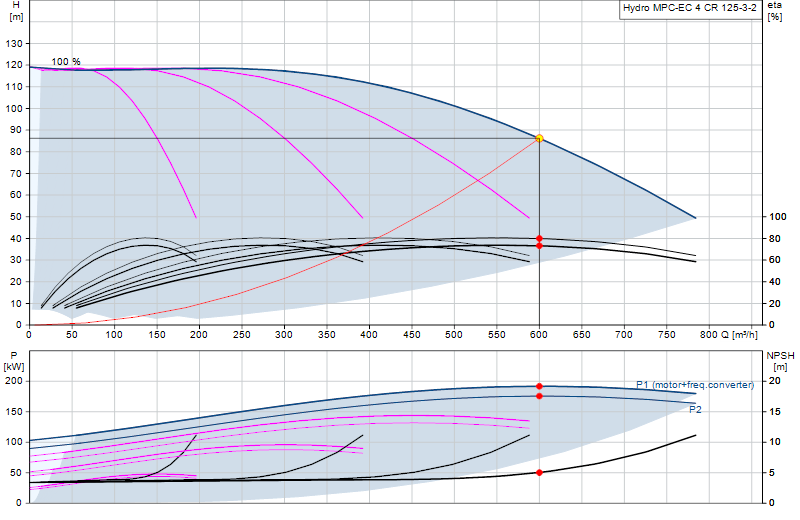

Performance curve
Hover over the curve to read flow and head at any point.
