Hydro MPC-E 4 CRNE 10-1 Grundfos

Grundfos

Hydro MPC-E 4 CRNE 10-1

Code: 93245070 EAN: 5713826082185

Type Hydro MPC-E (GENIECON UNIT)

Request quote

Technical specifications

Nominal flow (m³/h)	41.72 m³/h
Nominal head (m)	11.56 m
Max. head (m)	14.2 m
Phases	3
Rated voltage	400 V
Frequency (Hz)	50 Hz
Enclosure class	IP54
Max. liquid temp. (°C)	60 °C
Min. liquid temp. (°C)	5 °C
Max. ambient temp. (°C)	40 °C
Max. operating pressure	16 bar
Connection pressure rating	PN 16
Gross weight	299 kg
Net weight	244 kg
Approvals	CE,EAC
EAN code	5713826082185

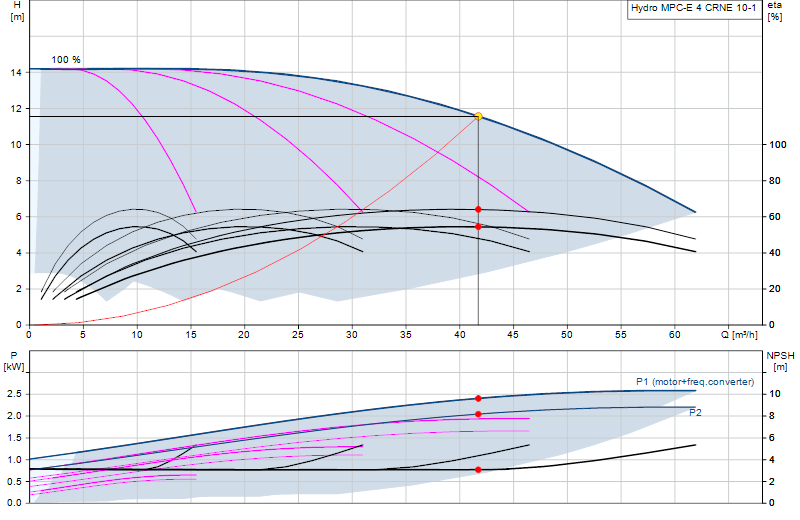

Performance curve

Performance curve Hydro MPC-E 4 CRNE 10-1

Hover over the curve to read flow and head at any point.

Documents and datasheets

Equivalent alternatives

Pumps in the same hydraulic class as 93245070 (equivalent flow and head), available in the catalogue.

Compare

Hydro MPC-E 4 CRIE 10-1

Grundfos Hydro MPC-E 4 CRIE 10-1 41.72 m³/h14.2 m

Compare

Hydro MPC-E 4 CRE 10-1

Grundfos Hydro MPC-E 4 CRE 10-1 41.72 m³/h14.2 m

Compare

TP 65-185/2

Grundfos TP 65-185/2 40.1 m³/h14.35 m2.2 kW

Compare

TP 65-170/2

Grundfos TP 65-170/2 41.7 m³/h13.3 m2.2 kW

Compare

NKG 80-50-200/219

Grundfos NKG 80-50-200/219 45.16 m³/h14.2 m3 kW

Compare

NBG 80-50-200/219

Grundfos NBG 80-50-200/219 45.16 m³/h14.2 m3 kW

Compare

NKE 50-200/219

Grundfos NKE 50-200/219 45 m³/h14.1 m3 kW

Compare

NK 50-200/219

Grundfos NK 50-200/219 45 m³/h14.1 m
