Technical specifications
| Nominal flow (m³/h) | 10.74 m³/h |
| Nominal head (m) | 35.69 m |
| Max. head (m) | 47.8 m |
| Phases | 3 |
| Rated voltage | 400 V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP54 |
| Max. liquid temp. (°C) | 60 °C |
| Min. liquid temp. (°C) | 5 °C |
| Max. ambient temp. (°C) | 40 °C |
| Max. operating pressure | 16 bar |
| Connection pressure rating | PN 16 |
| Gross weight | 166 kg |
| Net weight | 124 kg |
| Approvals | CE,EAC |
| EAN code | 5713826087500 |

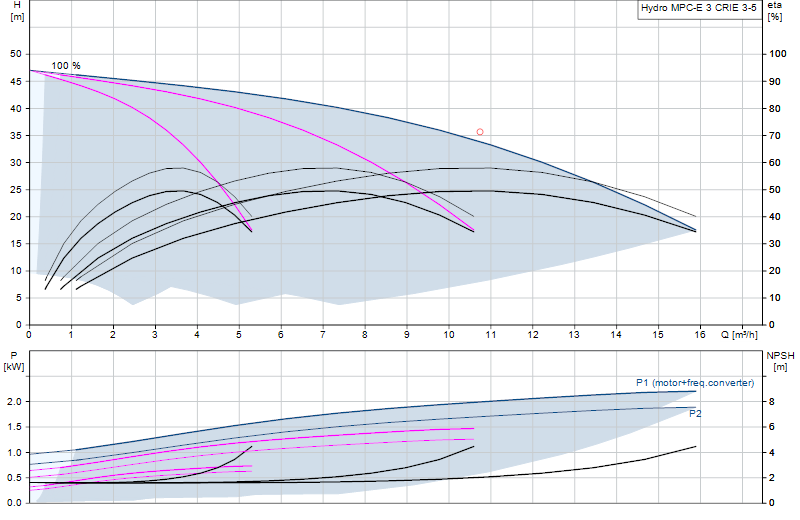

Performance curve
Hover over the curve to read flow and head at any point.
Documents and datasheets
-
Hydro MPC - systems with 2 to 6 pumps and GENIECON PANEL
Data booklets · English 22,8 MB -
Hydro MPC (Data booklet)
Data booklets · English 5,5 MB -
Hydro MPC (Installation and operating instructions)
Installation & operating instructions · English 5,9 MB -
Hydro MPC (Safety instructions)
Installation & operating instructions · English 2,5 MB -
Hydro MPC (Quick Guide)
Quick Guides · English 4,1 MB -
Hydro MPC Superior Boosting
Product Brochures · English 1,4 MB
Variants & alternative codes
Equivalent alternatives
Pumps in the same hydraulic class as 93245638 (equivalent flow and head), available in the catalogue.
