Hydro MPC-E 3 CRIE 10-1 Grundfos

Grundfos

Hydro MPC-E 3 CRIE 10-1

Code: 93245607 EAN: 5713826087197

Type Hydro MPC-E (GENIECON UNIT)

Request quote

Technical specifications

Nominal flow (m³/h)	31.29 m³/h
Nominal head (m)	11.56 m
Max. head (m)	14.2 m
Phases	3
Rated voltage	400 V
Frequency (Hz)	50 Hz
Enclosure class	IP54
Max. liquid temp. (°C)	60 °C
Min. liquid temp. (°C)	5 °C
Max. ambient temp. (°C)	40 °C
Max. operating pressure	16 bar
Connection pressure rating	PN 16
Gross weight	233 kg
Net weight	187 kg
Approvals	CE,EAC
EAN code	5713826087197

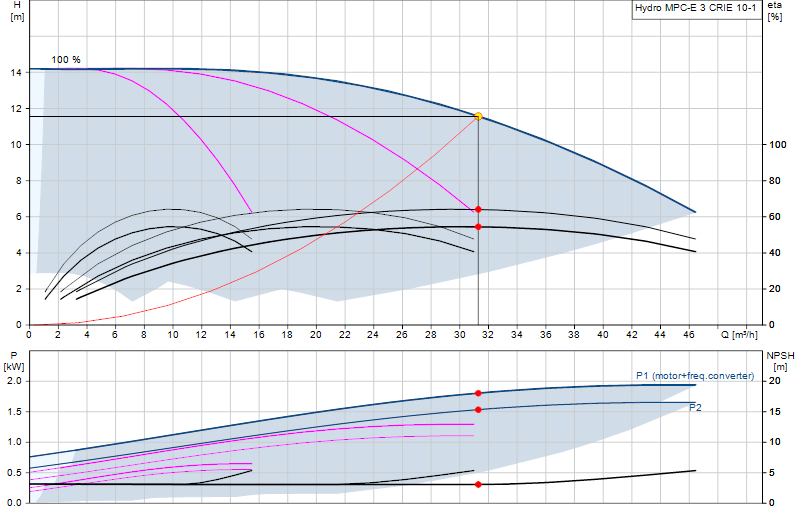

Performance curve

Performance curve Hydro MPC-E 3 CRIE 10-1

Hover over the curve to read flow and head at any point.
