Technical specifications
| Nominal flow (m³/h) | 450 m³/h |
| Nominal head (m) | 86.2 m |
| Phases | 3 |
| Rated voltage | 380-415 V |
| Frequency (Hz) | 50 / 60 Hz |
| Enclosure class | IP54 |
| Max. liquid temp. (°C) | 60 °C |
| Min. liquid temp. (°C) | 5 °C |
| Max. ambient temp. (°C) | 40 °C |
| Gross weight | 2850 kg |
| Net weight | 2720 kg |
| EAN code | 5713829179417 |

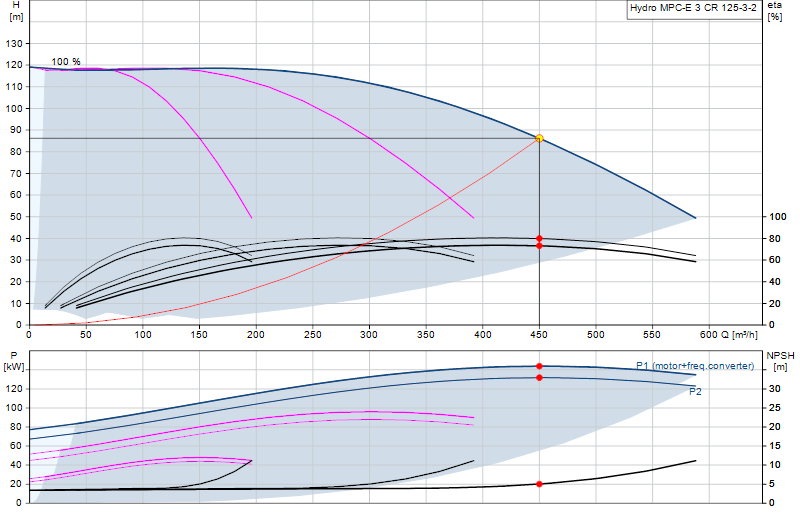

Performance curve
Hover over the curve to read flow and head at any point.
