Hydro MPC-E 2 CRNE 45-1 Grundfos
Grundfos

Hydro MPC-E 2 CRNE 45-1

Code: 93245756 EAN: 5713826088644
Type Hydro MPC-E (GENIECON UNIT)
Request quote

Technical specifications

Nominal flow (m³/h)108 m³/h
Nominal head (m)28.1 m
Max. head (m)38.6 m
Phases3
Rated voltage400 V
Frequency (Hz)50 Hz
Enclosure classIP54
Max. liquid temp. (°C)60 °C
Min. liquid temp. (°C)5 °C
Max. ambient temp. (°C)40 °C
Max. operating pressure16 bar
Connection pressure ratingPN 16
Gross weight393 kg
Net weight354 kg
ApprovalsCE,EAC
EAN code5713826088644

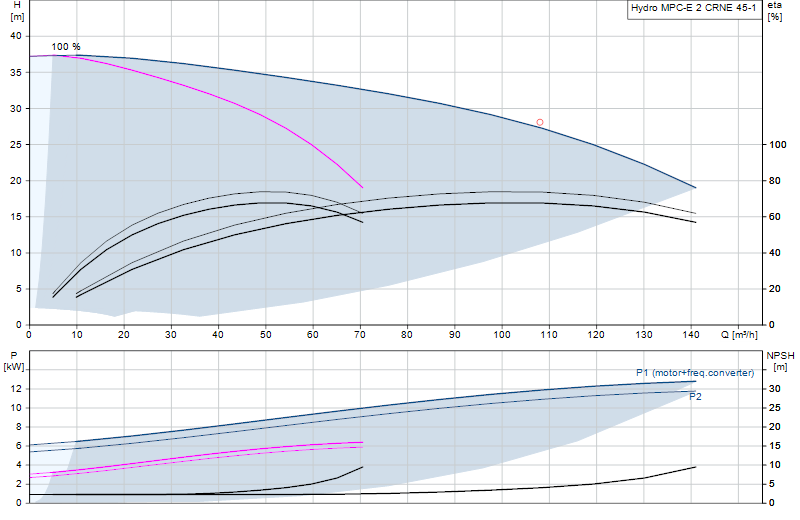

Performance curve

Performance curve Hydro MPC-E 2 CRNE 45-1

Hover over the curve to read flow and head at any point.

Documents and datasheets

Equivalent alternatives

Pumps in the same hydraulic class as 93245756 (equivalent flow and head), available in the catalogue.

Hydro MPC-E 2 CRE 45-1
Grundfos Hydro MPC-E 2 CRE 45-1 108 m³/h38.6 m
Hydro MPC-E 5 CRE 15-2
Grundfos Hydro MPC-E 5 CRE 15-2 104 m³/h39.9 m
Hydro MPC-E 5 CRNE 15-2
Grundfos Hydro MPC-E 5 CRNE 15-2 104 m³/h39.9 m
Hydro MPC-E 5 CRIE 15-2
Grundfos Hydro MPC-E 5 CRIE 15-2 104 m³/h39.9 m
Equivalents
TPE2 D 80-520
Grundfos TPE2 D 80-520 114.8 m³/h38.93 m15 kW
TPE3 D 80-520
Grundfos TPE3 D 80-520 114.8 m³/h38.93 m15 kW
NK 65-210/177
Grundfos NK 65-210/177 115.3 m³/h38.79 m18.5 kW
Equivalents
Hydro EN 50-200
Grundfos Hydro EN 50-200 105.5 m³/h36.5 m18.5 kW
Equivalents
