Technical specifications
| Nominal flow (m³/h) | 6.64 l/s |
| Nominal head (m) | 13.41 m |
| Max. head (m) | 20.1 m |
| Phases | 3 |
| Rated voltage | 400-415 V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP68 |
| Insulation class | F |
| Max. liquid temp. (°C) | 40 °C |
| Min. liquid temp. (°C) | 0 °C |
| Max. ambient temp. (°C) | 40 °C |
| Max. operating pressure | 6 bar |
| Pipe connection | Rs2 |
| Connection pressure rating | PN 10 |
| Pump housing material | Cast iron |
| Impeller material | Cast iron |
| Gross weight | 48.5 kg |
| Net weight | 43.2 kg |
| Approvals | LGA |
| EAN code | 5700396853840 |

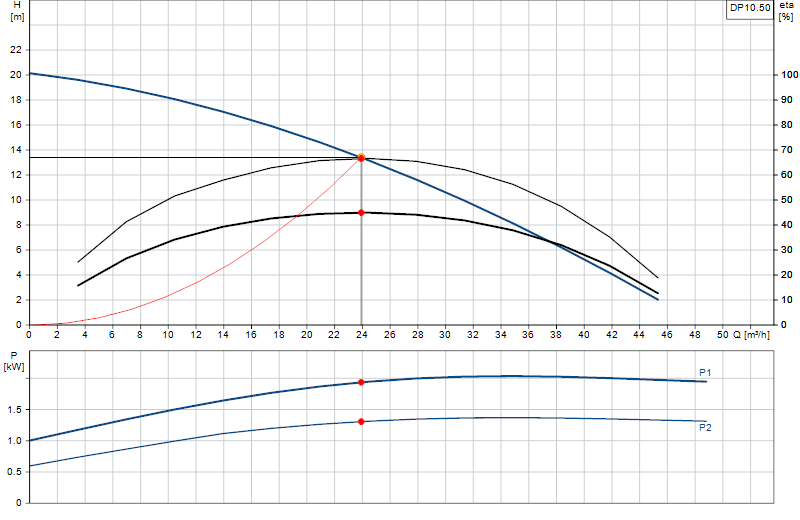

Performance curve
Hover over the curve to read flow and head at any point.
Documents and datasheets
-
DP, EF, SL1, SLV standard and AUTOADAPT pumps (0.6 to 2.6 kW) (Data booklet)
Data booklets · English 9,9 MB -
Correction sheet - DP/EF, SL1/SLV IO, IOS
Installation & operating instructions · English 0,2 MB -
DP 10, EF 30, SL1.50, SLV.65 (Safety instructions)
Installation & operating instructions · English 5,4 MB -
DP 10, EF 30, SL1.50, SLV.65 (Safety instructions/Correction sheet)
Installation & operating instructions · English 0,3 MB -
DP 10, EF 30, SL1.50, SLV.65 AUTOAdapt (Safety instructions)
Installation & operating instructions · English 5,5 MB -
DP and EF AUTOADAPT (Installation and operating instructions)
Installation & operating instructions · English 7,5 MB -
SEG, DP, EF, SL1/SLV AUTOADAPT fuse box, type ADC
Installation & operating instructions · English 1,5 MB -
SL1.50 and SLV.65, 0.9 - 1.5 kW (Installation and operating instructions)
Installation & operating instructions · English 5,7 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
GRUNDFOS DP and EF ranges, wastewater pumps 0.6 – 2.6 kW (Product brochure)
Product Brochures · English 0,5 MB -
GRUNDFOS WASTEWATER PRODUCTS (Product brochure)
Product Brochures · English 3,6 MB -
GRUNDFOS WASTEWATER, Accessory catalogue (Product brochure)
Product Brochures · English 5,5 MB -
INCREASE OPERATIONAL RELIABILITY IN YOUR NETWORK (Product brochure)
Product Brochures · English 2,9 MB -
Process Driven Engineering (Leaflet)
Product Brochures · English 5,7 MB -
SEG, DP, EF, AND SL (AUTOadapt ranges) (Product brochure)
Product Brochures · English 5,0 MB -
Water Utility range (Product brochure)
Product Brochures · English 3,9 MB -
DP, EF AUTOADAPT (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB -
DP, EF, SL1, SLV (Service Kit Catalogue)
Service · English 10,9 MB -
DP, EF, SL1, SLV and SEG AUTOADAPT (Electronic unit) (Service kit instruction)
Service · English 4,7 MB -
DP, EF, SL1, SLV and SEG AUTOADAPT, Level sensor (Service kit instruction)
Service · English 3,5 MB -
DP/EF/SL1/SLV and AUTOADAPT (Service instructions)
Service · English 5,5 MB -
Fitting instruction - guide rail bracket (Service kit instruction)
Service · English 0,4 MB
Variants & alternative codes
Equivalent alternatives
Pumps in the same hydraulic class as 96104208 (equivalent flow and head), available in the catalogue.
