Technical specifications
| Phases | 3 |
| Voltage (V) | 230/400 V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 |
| Frequency converter | Not prepared for VFD |
| Max. liquid temp. (°C) | 90 °C |
| Min. liquid temp. (°C) | -10 °C |
| Pump housing material | Aluminium |
| Gross weight | 74.6 kg |
| Net weight | 58.1 kg |
| Approvals | CE,EAC,CNROHSEX |
| EAN code | 5713834806445 |

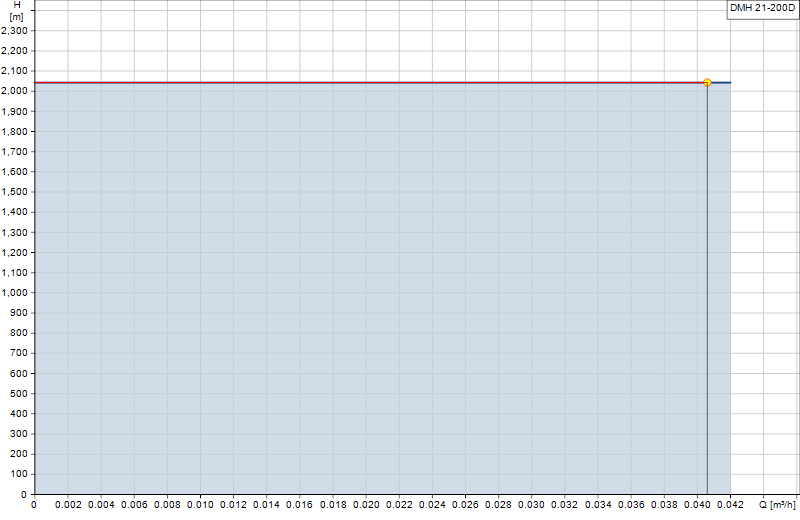

Performance curve
Hover over the curve to read flow and head at any point.
