Technical specifications
| Pump type | CRNE |
| Nominal flow (m³/h) | 2.21 m³/h |
| Nominal head (m) | 121.6 m |
| Max. head (m) | 194.3 m |
| Number of stages | 17 |
| Minimum efficiency index (MEI) | 0.70 |
| Power P2 (kW) | 1.5 kW |
| Phases | 1 |
| Voltage (V) | 200-240 V |
| Frequency (Hz) | 50 / 60 Hz |
| Enclosure class | IP55 |
| Frequency converter | Built-in |
| Max. liquid temp. (°C) | 120 °C |
| Min. liquid temp. (°C) | -20 °C |
| Max. ambient temp. (°C) | 50 °C |
| Max. operating pressure | 25 bar |
| Pipe connection | FlexiClamp |
| Connection pressure rating | PN 25 |
| Impeller material | Stainless steel |
| Shaft seal | HQQE |
| Length (mm) | 162 mm |
| Height (mm) | 50 mm |
| Width (mm) | 210 mm |
| Gross weight | 35.3 kg |
| Net weight | 29.7 kg |
| Approvals | CE,UKCA,SEPRO,RCM, |
| Motor number | 98190188 |
| EAN code | 5715468459424 |

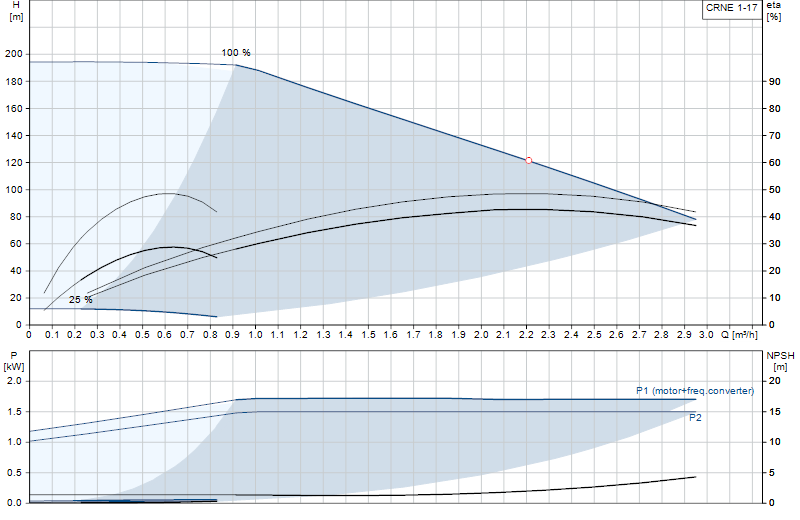

Performance curve
Hover over the curve to read flow and head at any point.
