Technical specifications
| Pump type | CRN |
| Nominal flow (m³/h) | 215 m³/h |
| Nominal head (m) | 39.5 m |
| Max. head (m) | 54.7 m |
| Number of stages | 1 |
| Minimum efficiency index (MEI) | 0.70 |
| Power P2 (kW) | 37 kW |
| Phases | 3 |
| Voltage (V) | 380-420D/660-725Y V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 |
| Frequency converter | None |
| Max. liquid temp. (°C) | 120 °C |
| Min. liquid temp. (°C) | -20 °C |
| Max. ambient temp. (°C) | 55 °C |
| Max. operating pressure | 16 bar |
| Pipe connection | DIN |
| Connection pressure rating | PN 16 |
| Impeller material | Stainless steel |
| Shaft seal | HQQE |
| Length (mm) | 615 mm |
| Height (mm) | 200 mm |
| Width (mm) | 599 mm |
| Gross weight | 706 kg |
| Net weight | 559 kg |
| Approvals | CE,UKCA,SEPRO |
| Motor number | 93322792 |
| EAN code | 5715472676855 |

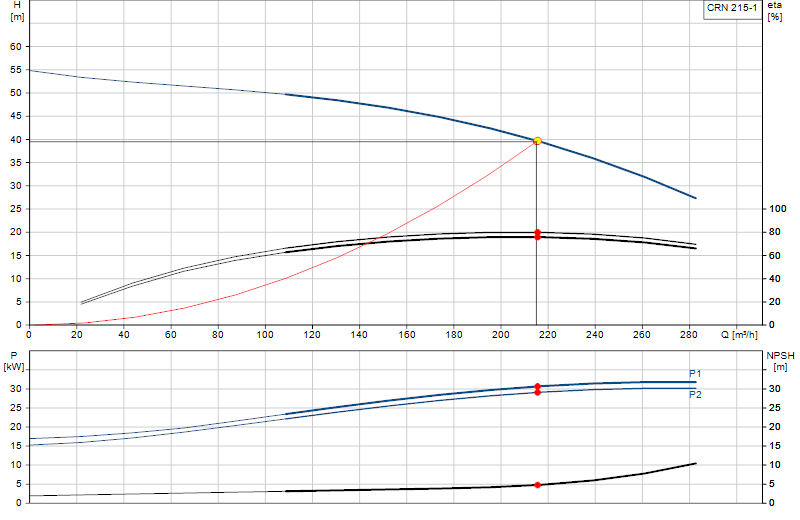

Performance curve
Hover over the curve to read flow and head at any point.
