Technical specifications
| Pump type | CR |
| Nominal flow (m³/h) | 2.9 m³/h |
| Nominal head (m) | 23.3 m |
| Max. head (m) | 30.7 m |
| Number of stages | 18 |
| Minimum efficiency index (MEI) | 0.57 |
| Power P2 (kW) | 0.37 kW |
| Phases | 3 |
| Voltage (V) | 220-240D/380-415Y V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 Dust/Jetting |
| Frequency converter | None |
| Max. liquid temp. (°C) | 120 °C |
| Min. liquid temp. (°C) | -20 °C |
| Max. ambient temp. (°C) | 40 °C |
| Max. operating pressure | 16 bar |
| Pipe connection | Oval / Rp |
| Connection pressure rating | PN 16 |
| Impeller material | Stainless steel |
| Shaft seal | HQQE |
| Length (mm) | 160 mm |
| Height (mm) | 50 mm |
| Width (mm) | 220 mm |
| Gross weight | 31.9 kg |
| Net weight | 27.9 kg |
| Approvals | CE,EAC,UKCA,SEPRO,RCM, |
| Motor number | 99957643 |
| EAN code | 5700830282649 |

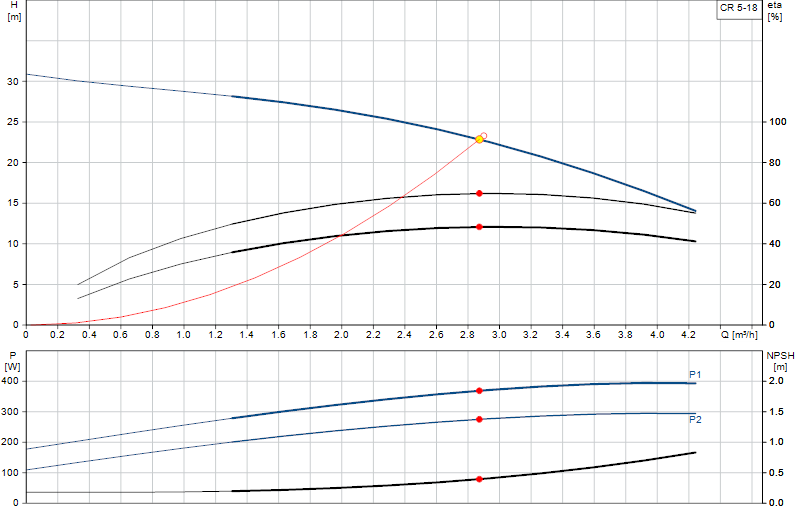

Performance curve
Hover over the curve to read flow and head at any point.
