Technical specifications
| Pump type | CR |
| Nominal flow (m³/h) | 30 m³/h |
| Nominal head (m) | 90.4 m |
| Max. head (m) | 116.8 m |
| Number of stages | 6 |
| Minimum efficiency index (MEI) | 0.70 |
| Power P2 (kW) | 11 kW |
| Phases | 3 |
| Voltage (V) | 380-400D/660-690Y V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 Dust/Jetting |
| Frequency converter | None |
| Max. liquid temp. (°C) | 120 °C |
| Min. liquid temp. (°C) | -30 °C |
| Max. ambient temp. (°C) | 60 °C |
| Max. operating pressure | 16 bar |
| Pipe connection | DIN |
| Connection pressure rating | PN 40 |
| Impeller material | Stainless steel |
| Shaft seal | HQQE |
| Length (mm) | 320 mm |
| Height (mm) | 105 mm |
| Width (mm) | 298 mm |
| Gross weight | 204 kg |
| Net weight | 171 kg |
| Approvals | CE,EAC,UKCA,SEPRO, |
| Motor number | 92754774 |
| EAN code | 5715471940520 |

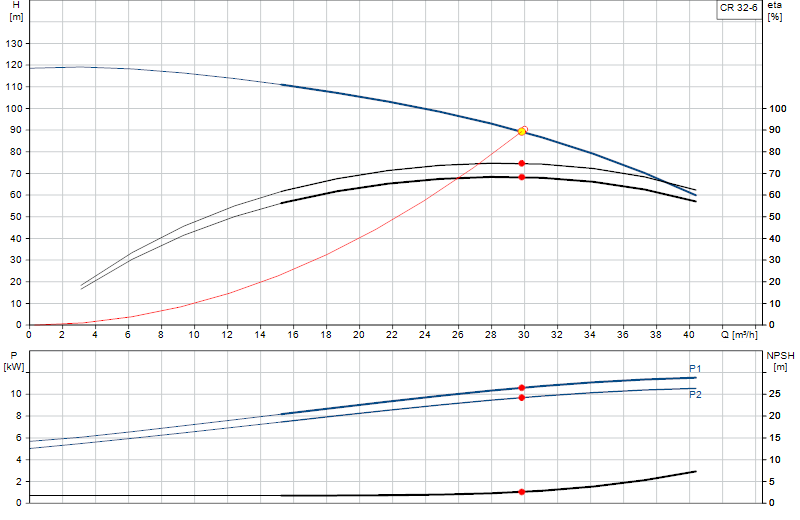

Performance curve
Hover over the curve to read flow and head at any point.
