Technical specifications
| Pump type | CR |
| Nominal flow (m³/h) | 1.8 m³/h |
| Nominal head (m) | 42.9 m |
| Max. head (m) | 56 m |
| Number of stages | 9 |
| Minimum efficiency index (MEI) | 0.70 |
| Power P2 (kW) | 0.55 kW |
| Phases | 3 |
| Voltage (V) | 220-230D/380-400Y V |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 Dust/Jetting |
| Frequency converter | None |
| Max. liquid temp. (°C) | 120 °C |
| Min. liquid temp. (°C) | -20 °C |
| Max. ambient temp. (°C) | 60 °C |
| Max. operating pressure | 25 bar |
| Pipe connection | DIN / ANSI / JIS |
| Connection pressure rating | PN 25 |
| Impeller material | Stainless steel |
| Shaft seal | HQQE |
| Length (mm) | 250 mm |
| Height (mm) | 75 mm |
| Width (mm) | 220 mm |
| Gross weight | 29.8 kg |
| Net weight | 27 kg |
| Approvals | CE,EAC,UKCA,SEPRO,RCM, |
| Motor number | 92740062 |
| EAN code | 5715471915542 |

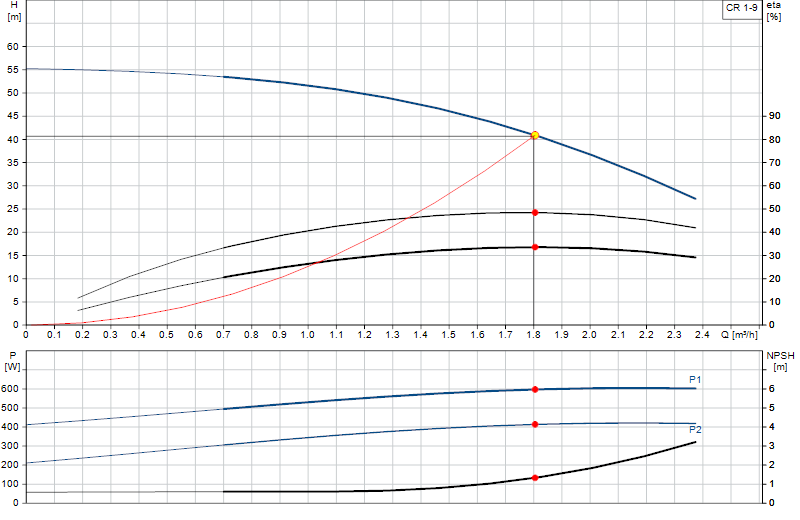

Performance curve
Hover over the curve to read flow and head at any point.
