Technical specifications
| Pump type | CM |
| Minimum efficiency index (MEI) | 0.7 |
| Phases | 3 |
| Frequency (Hz) | 50 Hz |
| Enclosure class | IP55 |
| Insulation class | F |
| Frequency converter | None |
| Max. liquid temp. (°C) | 40 °C |
| Min. liquid temp. (°C) | -20 °C |
| Max. ambient temp. (°C) | 55 °C |
| Max. operating pressure | 10 bar |
| Pipe connection | Rp |
| Pump housing material | Cast iron |
| Impeller material | Stainless steel |
| Shaft seal | AVBE |
| Length (mm) | 471 mm |
| Height (mm) | 90 mm |
| Gross weight | 29.1 kg |
| Net weight | 26.6 kg |
| Approvals | CE,EAC,CURUS,UKCA |
| EAN code | 5700310917856 |

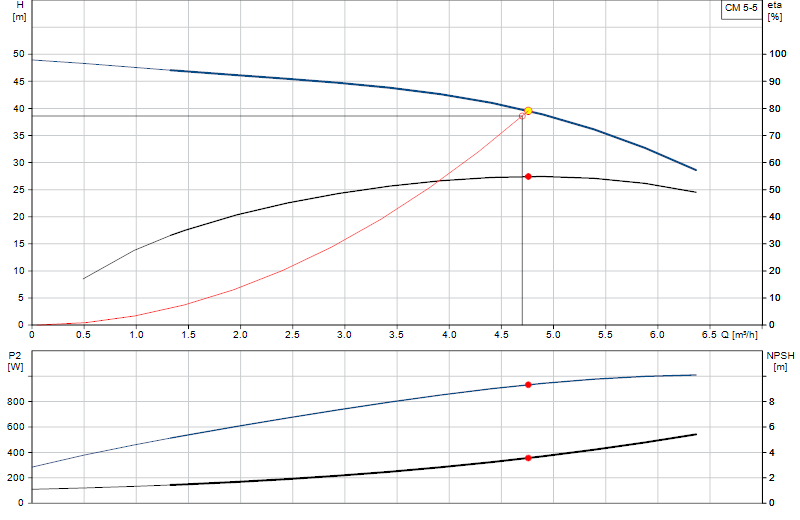

Performance curve
Hover over the curve to read flow and head at any point.
